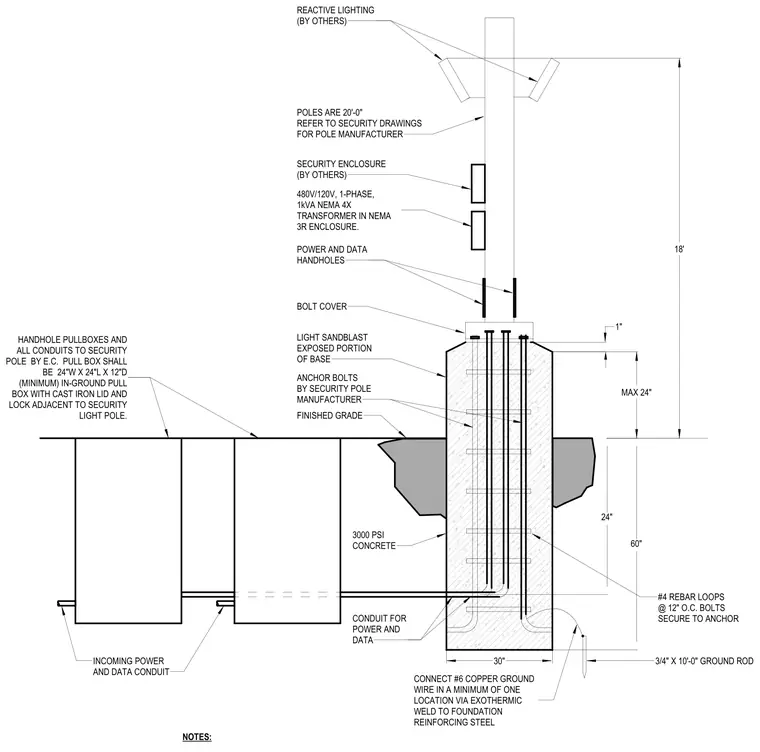

A twenty-foot security reactive lighting pole anchors to a cast-in-place concrete foundation pier. The foundation is poured using three thousand psi concrete, reinforced with number four rebar loops at twelve inches on center, and includes a three-quarter-inch by ten-foot ground rod connected via an exothermic weld to the reinforcing steel. Adjacent underground pull boxes measuring twenty-four inches wide by twenty-four inches long by twelve inches deep with cast-iron lids house incoming power and data conduits routed into the foundation. The pole assembly features a transformer in a NEMA enclosure, power and data handholes, and anchor bolts provided by the pole manufacturer with a light sandblasted exposed portion at the finished grade.
1" 60" 24" 30" 18' REACTIVE LIGHTING (BY OTHERS) POLES ARE 20'-0" REFER TO SECURITY DRAWINGS FOR POLE MANUFACTURER SECURITY ENCLOSURE (BY OTHERS) 480V/120V, 1-PHASE, 1kVA NEMA 4X TRANSFORMER IN NEMA 3R ENCLOSURE. POWER AND DATA HANDHOLES BOLT COVER LIGHT SANDBLAST EXPOSED PORTION OF BASE ANCHOR BOLTS BY SECURITY POLE MANUFACTURER FINISHED GRADE HANDHOLE PULLBOXES AND ALL CONDUITS TO SECURITY POLE BY E.C. PULL BOX SHALL BE 24"W X 24"L X 12"D (MINIMUM) IN-GROUND PULL BOX WITH CAST IRON LID AND LOCK ADJACENT TO SECURITY LIGHT POLE. 3000 PSI CONCRETE CONDUIT FOR POWER AND DATA #4 REBAR LOOPS @ 12" O.C. BOLTS SECURE TO ANCHOR INCOMING POWER AND DATA CONDUIT NOTES: CONNECT #6 COPPER GROUND WIRE IN A MINIMUM OF ONE LOCATION VIA EXOTHERMIC WELD TO FOUNDATION REINFORCING STEEL 3/4" X 10'-0" GROUND ROD MAX 24"
