E-HRG5H — Security Camera Pole Mount Bracket Detail

Electrical · E-HRG5H

Security Camera Pole Mount Bracket Detail

Materials

About this detail

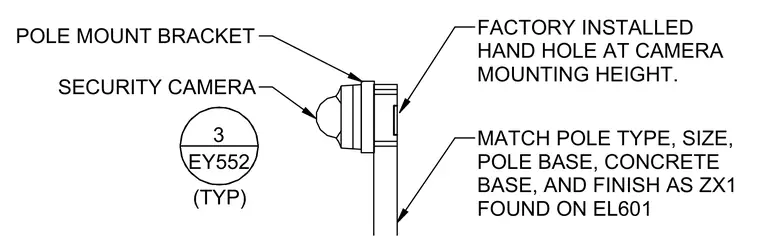

A security camera is secured to a support pole using a dedicated pole mount bracket positioned at the specified mounting height. A factory-installed hand hole is located on the pole at the same height for wiring access. The pole type, size, concrete base, and finish match the specifications found on sheet EL601.

POLE MOUNT BRACKET SECURITY CAMERA MATCH POLE TYPE, SIZE, POLE BASE, CONCRETE BASE, AND FINISH AS ZX1 FOUND ON EL601 (TYP) 3 EY552 FACTORY INSTALLED HAND HOLE AT CAMERA MOUNTING HEIGHT.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
