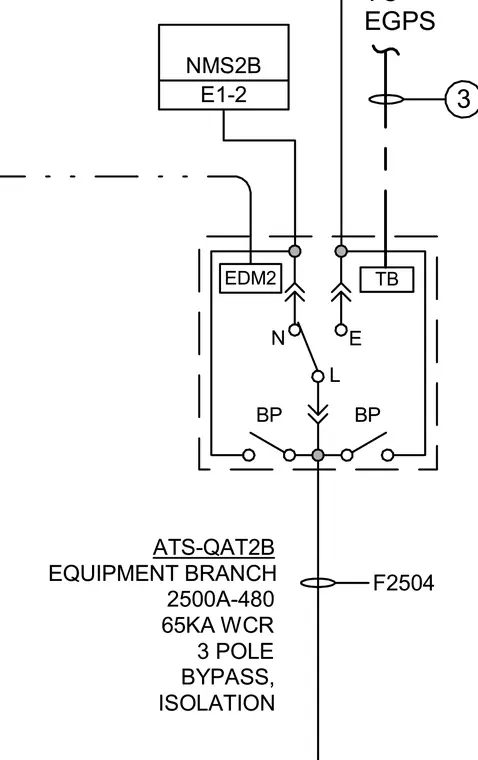

An electrical schematic details the ATS-QAT2B equipment branch featuring a 2500A, 480V, 65KA withstand current rating, three-pole bypass isolation automatic transfer switch. The diagram shows normal and emergency power inputs connecting through switch poles with bypass isolation provisions. Feeder connections route from the transfer switch to downstream distribution equipment including NMS2B E1-2 and EGPS.
EDM2 TB E1-2 NMS2B 3 TO EGPS ATS-QAT2B EQUIPMENT BRANCH 2500A-480 65KA WCR 3 POLE BYPASS, ISOLATION F2504 N E L BP BP EDM2 TB E1-2 NMS2B 3 TO EGPS ATS-QAT2B EQUIPMENT BRANCH 2500A-480 65KA WCR 3 POLE BYPASS, ISOLATION F2504 N E L BP BP
