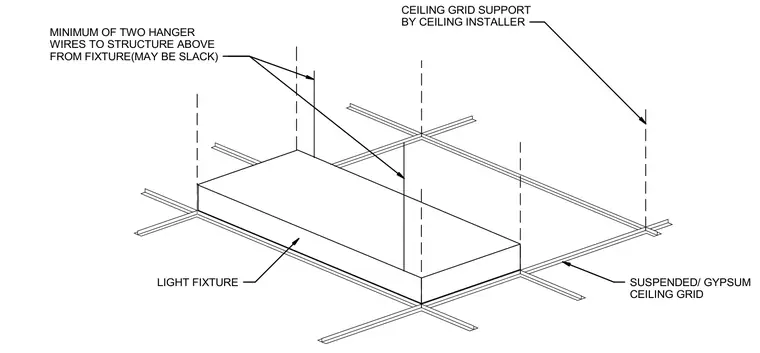

A recessed light fixture is supported within a suspended gypsum ceiling grid using a minimum of two independent hanger wires tied directly to the structure above, which may be installed with slack. The surrounding ceiling grid is supported separately by the ceiling installer.
LIGHT FIXTURE MINIMUM OF TWO HANGER WIRES TO STRUCTURE ABOVE FROM FIXTURE(MAY BE SLACK) SUSPENDED/ GYPSUM CEILING GRID CEILING GRID SUPPORT BY CEILING INSTALLER
