A grounding connector joins typical ground cables in a tap configuration. Above ground cable taps require a Burndy type NYT pressure connector. Below ground cable taps require a Cadweld type TA weld connection or high-pressure irreversible crimps.

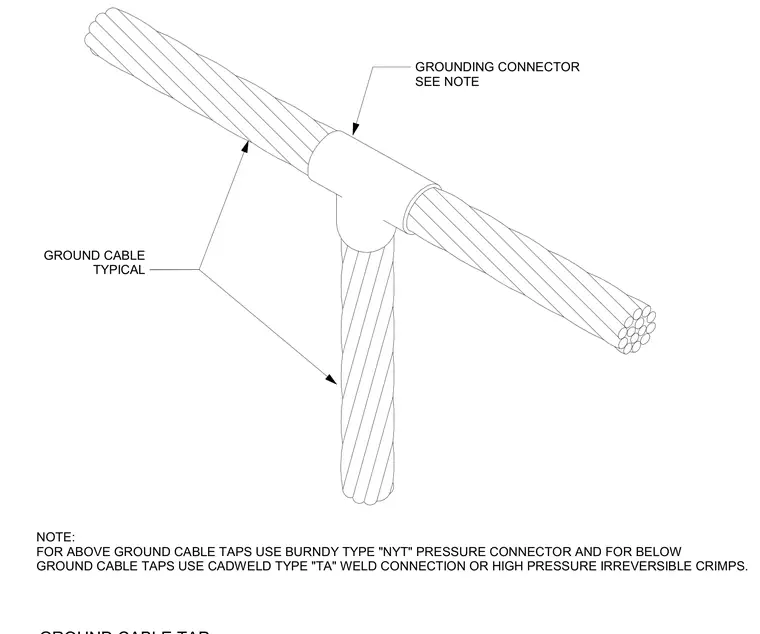

GROUNDING CONNECTOR SEE NOTE GROUND CABLE TYPICAL NOTE: FOR ABOVE GROUND CABLE TAPS USE BURNDY TYPE "NYT" PRESSURE CONNECTOR AND FOR BELOW GROUND CABLE TAPS USE CADWELD TYPE "TA" WELD CONNECTION OR HIGH PRESSURE IRREVERSIBLE CRIMPS.
