E-HHA3A — 2500A UPS Distribution Panel Single Line Diagram

Electrical · E-HHA3A

2500A UPS Distribution Panel Single Line Diagram

About this detail

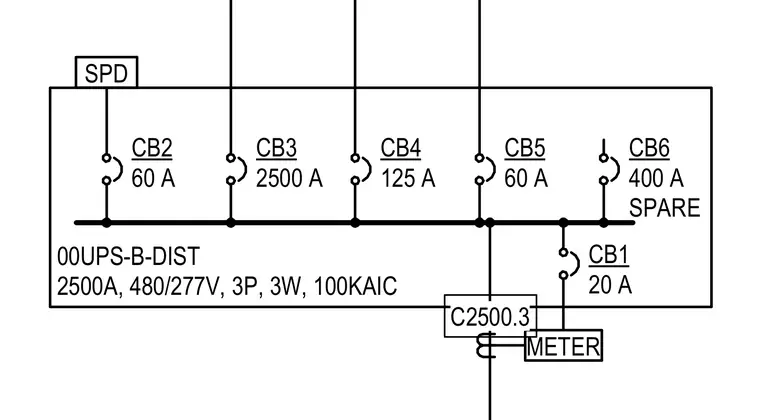

The 2500A 480/277V 3-phase 3-wire 100KAIC distribution panel 00UPS-B-DIST incorporates a surge protective device and multiple branch circuit breakers. Circuit breaker CB1 is rated at 20A with an associated meter and connection C2500.3. Circuit breakers CB2, CB5, and CB6 are rated at 60A, 125A, and 400A spare respectively. Circuit breakers CB3 and CB4 are rated at 2500A.

METER SPD 400 A SPARE CB6 60 A CB5 125 A CB4 2500 A CB3 60 A CB2 20 A CB1 C2500.3 00UPS-B-DIST 2500A, 480/277V, 3P, 3W, 100KAIC

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
