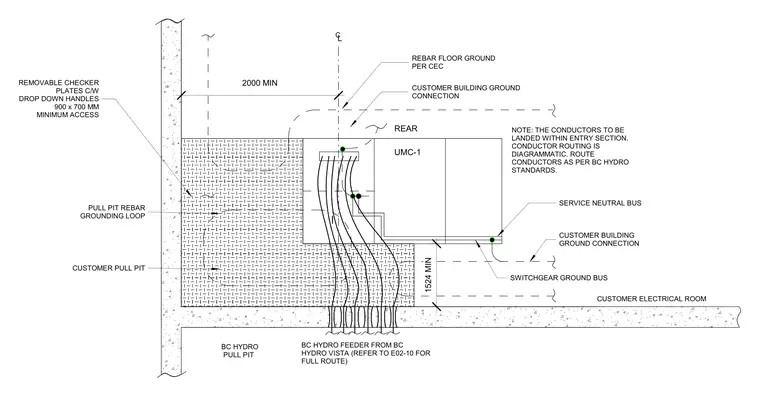

Customer electrical room pull pit featuring reinforced concrete construction and removable checker plates with drop-down handles providing a minimum access of 900 by 700 millimeters. BC Hydro feeders enter from the utility pull pit below into the rear of the UMC-1 switchgear section with a minimum clearance of 1524 millimeters. Conductors are landed within the entry section and routed diagrammatically per utility standards. Grounding provisions include a pull pit rebar grounding loop, rebar floor grounding per the Canadian Electrical Code, a switchgear ground bus, and customer building ground connections.
C L 1524 MIN SWITCHGEAR GROUND BUS CUSTOMER BUILDING GROUND CONNECTION SERVICE NEUTRAL BUS BC HYDRO PULL PIT PULL PIT REBAR GROUNDING LOOP REMOVABLE CHECKER PLATES C/W DROP DOWN HANDLES 900 x 700 MM MINIMUM ACCESS 2000 MIN CUSTOMER BUILDING GROUND CONNECTION REBAR FLOOR GROUND PER CEC REAR UMC-1 CUSTOMER ELECTRICAL ROOM BC HYDRO FEEDER FROM BC HYDRO VISTA (REFER TO E02-10 FOR FULL ROUTE) CUSTOMER PULL PIT NOTE: THE CONDUCTORS TO BE LANDED WITHIN ENTRY SECTION. CONDUCTOR ROUTING IS DIAGRAMMATIC. ROUTE CONDUCTORS AS PER BC HYDRO STANDARDS.
