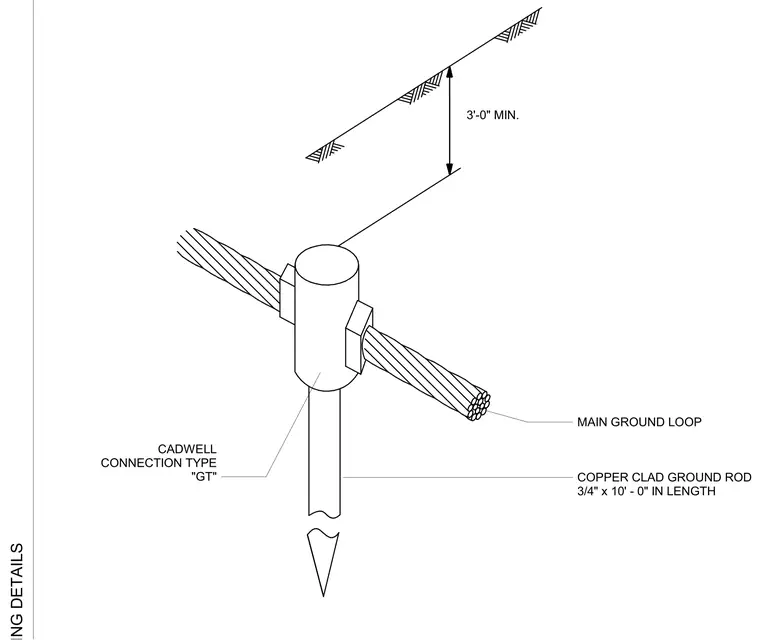

Connection of the main ground loop conductor to a three-quarter-inch by ten-foot-long copper-clad ground rod driven into the earth. The conductor is bonded directly to the vertical ground rod using a Cadwell type GT exothermic connection. The top of the ground rod is buried with a minimum earth cover of three feet.
MAIN GROUND LOOP CADWELL CONNECTION TYPE "GT" COPPER CLAD GROUND ROD 3/4" x 10' - 0" IN LENGTH 3'-0" MIN.
