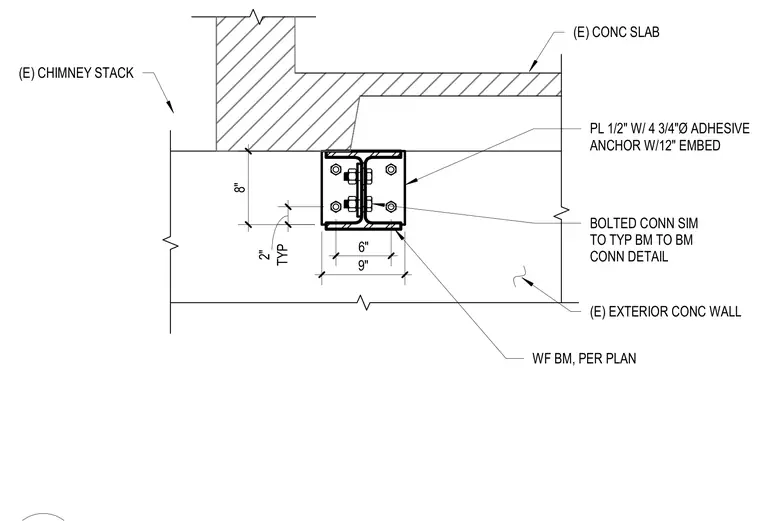

A wide flange beam is anchored to an existing exterior concrete wall below an existing concrete slab and chimney stack. A half-inch plate is secured with four three-quarter-inch diameter adhesive anchors with a twelve-inch embedment depth into the concrete wall. The connection utilizes a bolted assembly similar to a typical beam-to-beam connection detail, with dimensions indicating a six-inch by nine-inch plate footprint and specific edge clearances.
(E) CONC SLAB (E) EXTERIOR CONC WALL PL 1/2" W/ 4 3/4"Ø ADHESIVE ANCHOR W/12" EMBED WF BM, PER PLAN BOLTED CONN SIM TO TYP BM TO BM CONN DETAIL TYP 2" 8" 6" 9" (E) CHIMNEY STACK
