Compressor Motor Control Center Power Riser Diagram

About this detail

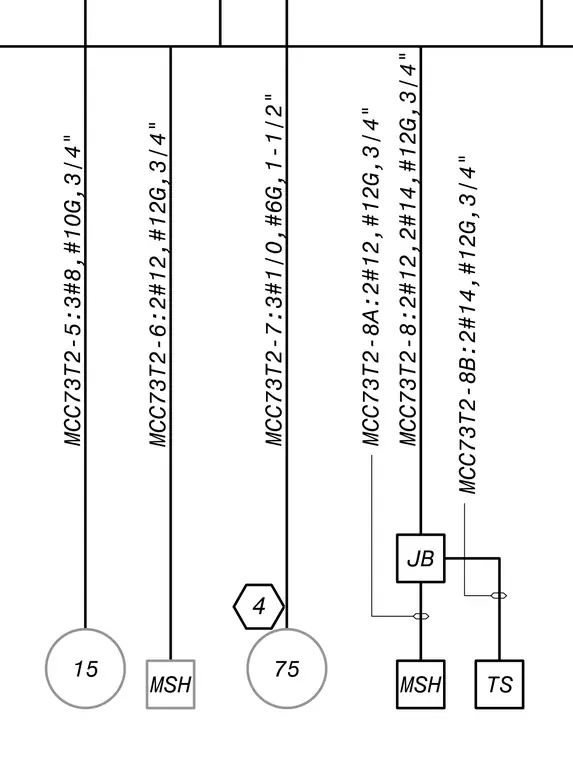

An electrical riser schematic details power distribution circuits originating from motor control center feeds to compressor units and associated junction boxes. Conductors are specified with individual wire sizes and grounding configurations within designated conduit diameters. The diagram outlines multiple homerun circuits including three #8 wires with a #10 ground in three-quarter-inch conduit, two #12 wires with a #12 ground in three-quarter-inch conduit, and three #1/0 wires with a #6 ground in one-and-one-half-inch conduit. Additional branch connections route through junction boxes serving motor starter and thermostat devices. Conduit runs and circuit identifications are labeled clearly for coordination during electrical installation.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
