A precast concrete communications hand hole with a split-lid cover is set into compacted fill over a three-inch minimum gravel base below the finished grade. Cast-in-place bells and segmented thinwall knockouts accommodate typical communications conduits entering the body. A one-half-inch by six-foot ground rod is installed in the ground hole, leaving six inches exposed for a connectivity point. The top cover is labeled for communications.

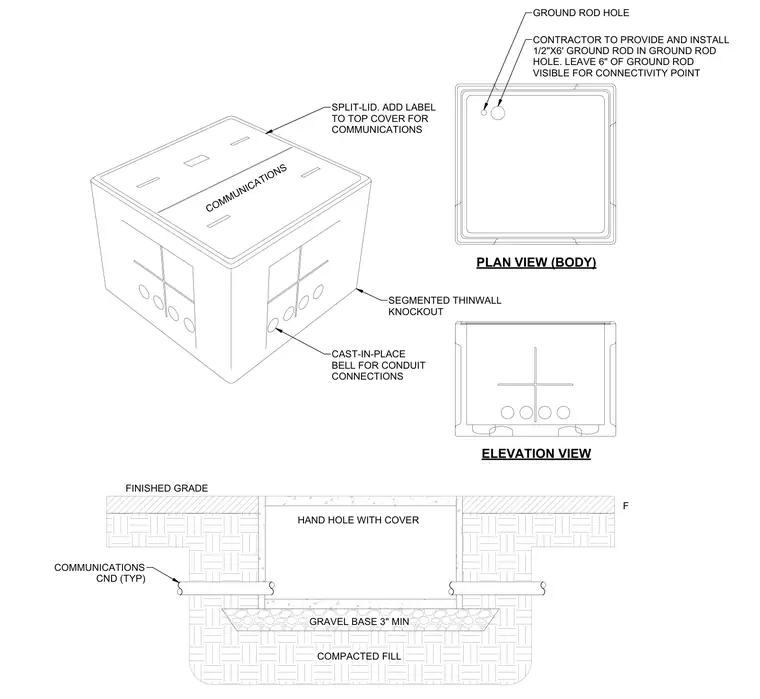

PLAN VIEW (BODY) GROUND ROD HOLE CONTRACTOR TO PROVIDE AND INSTALL 1/2"X6' GROUND ROD IN GROUND ROD HOLE. LEAVE 6" OF GROUND ROD VISIBLE FOR CONNECTIVITY POINT ELEVATION VIEW COMMUNICATIONS SPLIT-LID. ADD LABEL TO TOP COVER FOR COMMUNICATIONS F HAND HOLE WITH COVER GRAVEL BASE 3" MIN COMPACTED FILL COMMUNICATIONS CND (TYP) FINISHED GRADE SEGMENTED THINWALL KNOCKOUT CAST-IN-PLACE BELL FOR CONDUIT CONNECTIONS
