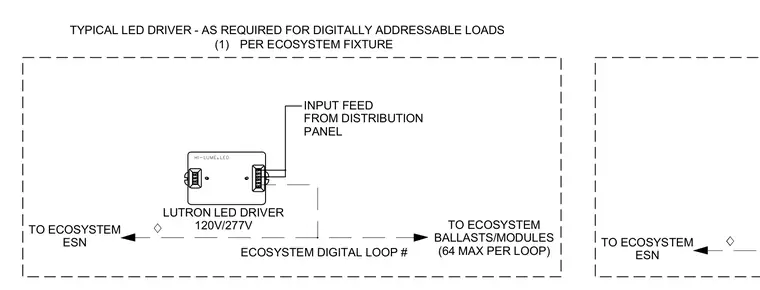

An input feed from the distribution panel connects to a 120V/277V Lutron Hi-Lume LED driver. One driver is provided per ecosystem fixture for digitally addressable loads. The driver interfaces with the Ecosystem digital loop, which supports a maximum of 64 devices per loop and connects to ecosystem ballasts, modules, and ESN devices.
LUTRON LED DRIVER 120V/277V TO ECOSYSTEM BALLASTS/MODULES (64 MAX PER LOOP) HI-LUME LED ® INPUT FEED FROM DISTRIBUTION PANEL ECOSYSTEM DIGITAL LOOP # TYPICAL LED DRIVER - AS REQUIRED FOR DIGITALLY ADDRESSABLE LOADS (1) PER ECOSYSTEM FIXTURE TO ECOSYSTEM ESN TO ECOSYSTEM ESN
