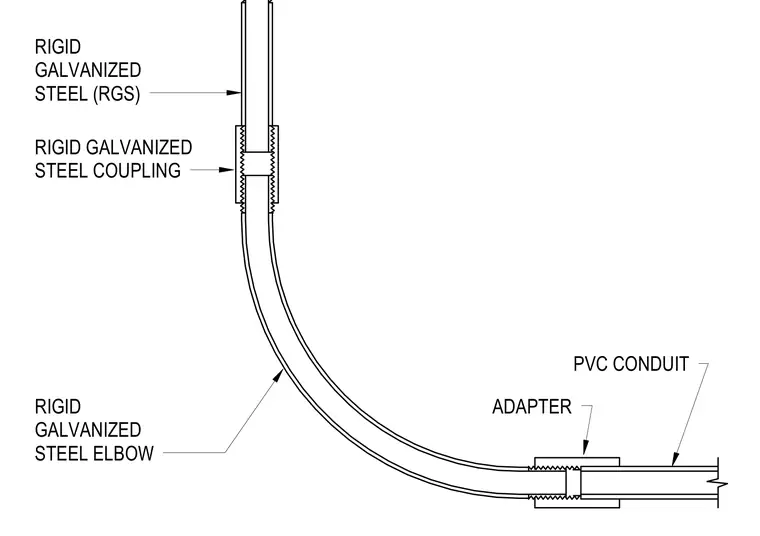

A PVC conduit transitions to a rigid galvanized steel (RGS) elbow via a threaded adapter. The RGS elbow continues vertically and connects to an upper rigid galvanized steel run using a threaded rigid galvanized steel coupling.
ADAPTER PVC CONDUIT RIGID GALVANIZED STEEL (RGS) RIGID GALVANIZED STEEL COUPLING RIGID GALVANIZED STEEL ELBOW
