Each key cylinder receives one nameplate featuring an upper half-circle shape with a diameter of 1.125 inches. The identifier name matches the Kirk key schedule and uses 0.25-inch bold stroke characters. Each key requires two identical nameplates, one per side, measuring 0.875 inches in diameter. The reference number copies the exact number stamped on the key using 3/32-inch high thin stroke characters.

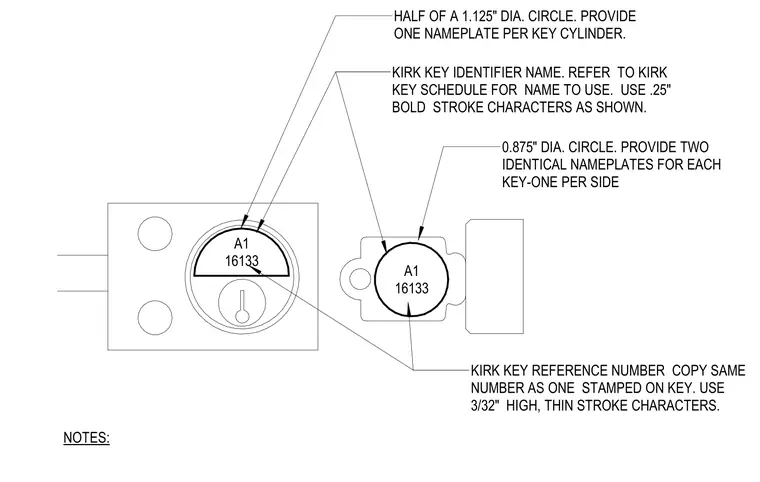

A1 16133 A1 16133 HALF OF A 1.125" DIA. CIRCLE. PROVIDE ONE NAMEPLATE PER KEY CYLINDER. KIRK KEY IDENTIFIER NAME. REFER TO KIRK KEY SCHEDULE FOR NAME TO USE. USE .25" BOLD STROKE CHARACTERS AS SHOWN. 0.875" DIA. CIRCLE. PROVIDE TWO IDENTICAL NAMEPLATES FOR EACH KEY-ONE PER SIDE KIRK KEY REFERENCE NUMBER COPY SAME NUMBER AS ONE STAMPED ON KEY. USE 3/32" HIGH, THIN STROKE CHARACTERS. NOTES:
