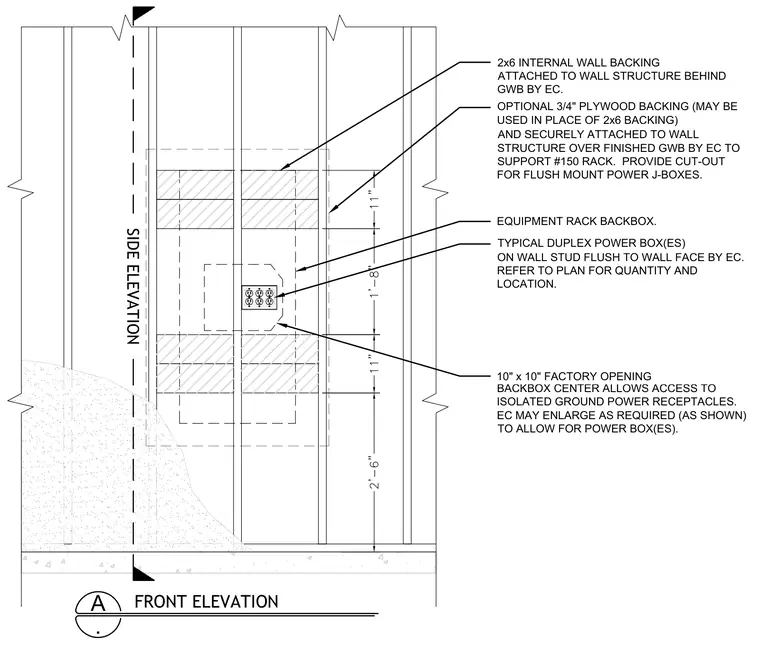

An equipment rack backbox and associated electrical components are installed on a wood-framed wall. Two-by-six internal wall backing is securely attached to the wall structure behind the gypsum wallboard by the electrical contractor. Optional three-quarter-inch plywood backing may be used in place of the two-by-six backing and is attached over the finished gypsum wallboard to support the rack, including cut-outs for flush-mounted power junction boxes. The equipment rack backbox features a ten-by-ten-inch factory opening at the center to allow access to isolated ground power receptacles, which the electrical contractor may enlarge as required. Typical duplex power boxes are mounted on the wall studs flush to the wall face.
A FRONT ELEVATION . SIDE ELEVATION 2x6 INTERNAL WALL BACKING SECURELY ATTACHED TO WALL STRUCTURE BEHIND GWB BY EC. EQUIPMENT RACK BACKBOX. 10" x 10" FACTORY OPENING IN RACK BACKBOX CENTER ALLOWS ACCESS TO ISOLATED GROUND POWER RECEPTACLES. EC MAY ENLARGE AS REQUIRED (AS SHOWN) TO ALLOW FOR POWER BOX(ES). TYPICAL DUPLEX POWER BOX(ES) MOUNTED ON WALL STUD FLUSH TO WALL FACE BY EC. REFER TO PLAN FOR QUANTITY AND LOCATION. OPTIONAL 3/4" PLYWOOD BACKING (MAY BE USED IN PLACE OF 2x6 BACKING) FURNISHED AND SECURELY ATTACHED TO WALL STRUCTURE OVER FINISHED GWB BY EC TO SUPPORT #150 RACK. PROVIDE CUT-OUT FOR FLUSH MOUNT POWER J-BOXES. 2x6 INTERNAL WALL BACKING EQUIPMENT RACK BACKBOX. 10" x 10" FACTORY OPENING TYPICAL DUPLEX POWER BOX(ES) OPTIONAL 3/4" PLYWOOD BACKING (MAY BE USED IN PLACE OF 2x6 BACKING)
