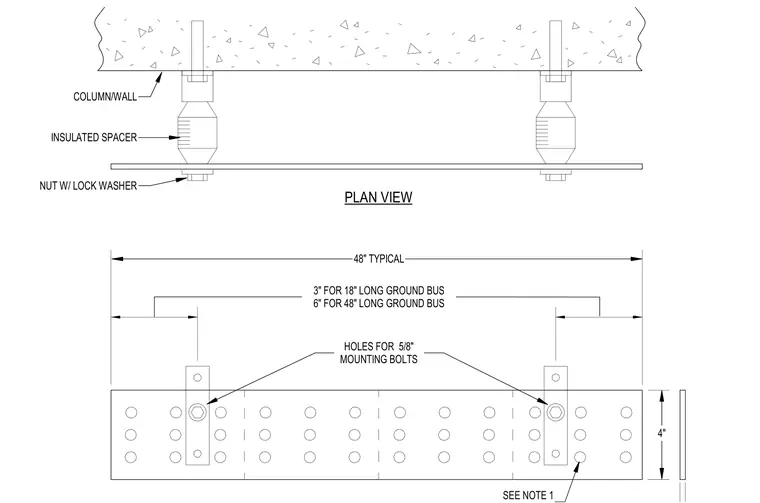

An electrical ground bus bar is fastened to a structural column or wall using insulated spacers with lock washers and nuts. The copper ground bus bar features pre-drilled holes for 5/8-inch mounting bolts. Spacers maintain clearance from the building structure to isolate the grounding system. Dimensional spacing is provided for standard 18-inch and 48-inch long ground bus configurations.
HOLES FOR 5/8" MOUNTING BOLTS 4" SEE NOTE 1 3" FOR 18" LONG GROUND BUS 6" FOR 48" LONG GROUND BUS 48" TYPICAL PLAN VIEW COLUMN/WALL INSULATED SPACER NUT W/ LOCK WASHER
