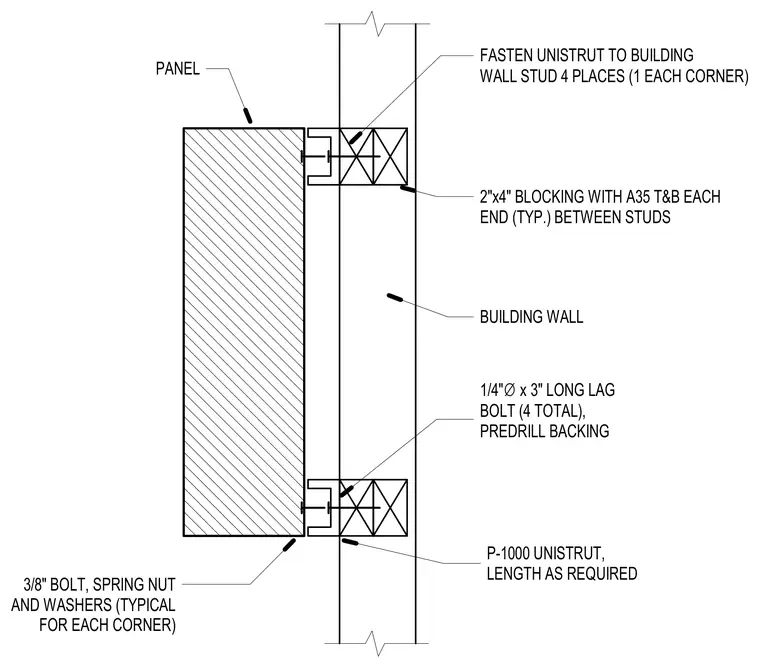

An electrical panel is mounted to a framed building wall using P-1000 Unistrut channels of required length. The Unistrut channels fasten to wood studs with 2"x4" blocking secured between studs using A35 framing anchors at each end. Four 1/4" diameter by 3" long lag bolts secure the blocking and channels to the building wall after predrilling the backing. The panel connects to the Unistrut channels at each corner using 3/8" bolts, spring nuts, and washers.
PANEL BUILDING WALL 3/8" BOLT, SPRING NUT AND WASHERS (TYPICAL FOR EACH CORNER) P-1000 UNISTRUT, LENGTH AS REQUIRED 1/4" ∅ x 3" LONG LAG BOLT (4 TOTAL), PREDRILL BACKING 2"x4" BLOCKING WITH A35 T&B EACH END (TYP.) BETWEEN STUDS FASTEN UNISTRUT TO BUILDING WALL STUD 4 PLACES (1 EACH CORNER)
