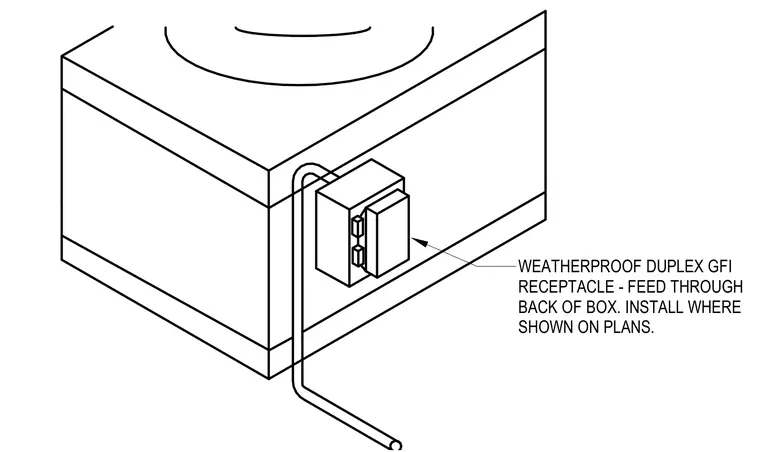

A weatherproof duplex ground-fault interrupter receptacle is surface mounted with a feed-through connection entering the back of the box as shown on plans.
WEATHERPROOF DUPLEX GFI RECEPTACLE - FEED THROUGH BACK OF BOX. INSTALL WHERE SHOWN ON PLANS.
