Electrical Schematic for MHF Center Shaft Drive and Fan

About this detail

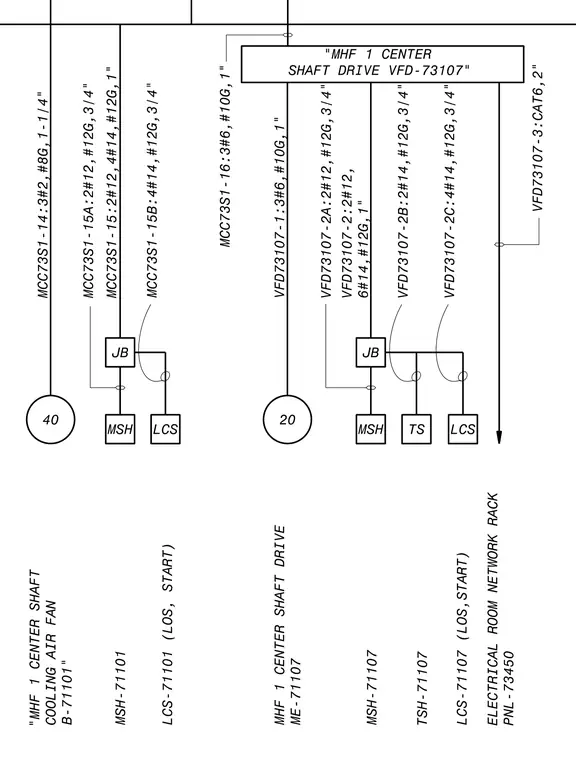

An electrical schematic diagram illustrating the power and control wiring for the MHF 1 center shaft drive and cooling air fan. The layout shows conduit runs and conductor sizes originating from motor control center circuits MCC73S1-14 through MCC73S1-16. Connections route through junction boxes and local control stations including local start switches and thermal sensors. Data communication lines such as CAT6 cables connect to the electrical room network rack.
