Electrical · E-GXNZV

Level 2 Sound Attenuated

Elements

About this detail

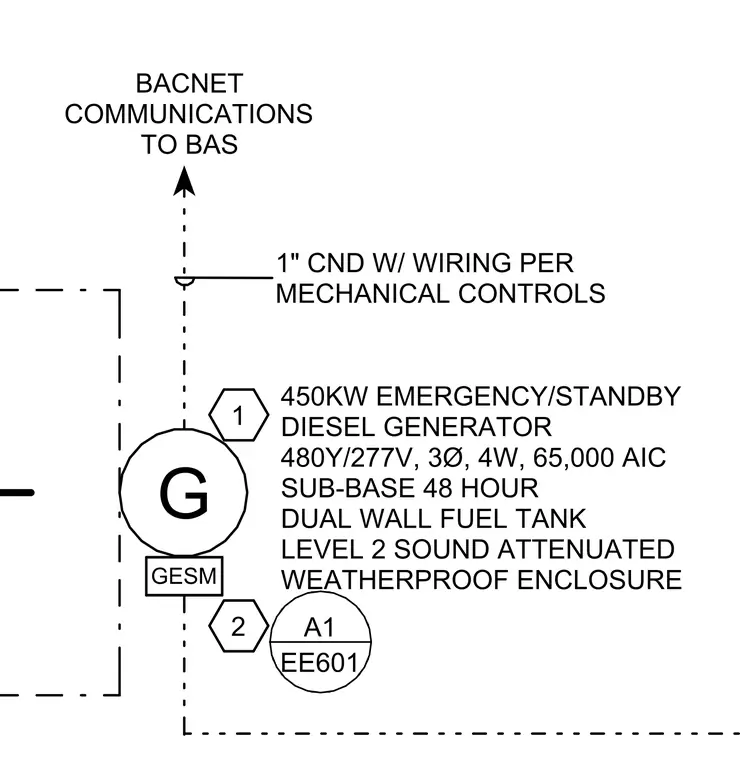

A 450 kilowatt emergency and standby diesel generator operates at 480Y/277 volts, three-phase, four-wire with a 65,000 AIC rating inside a level two sound-attenuated weatherproof enclosure. The unit includes a sub-base forty-eight-hour dual wall fuel tank. Control and monitoring connections include a one-inch conduit with wiring per mechanical controls and BACnet communications routed to the building automation system.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
