Single Door Electric Strike Wiring

Elements

About this detail

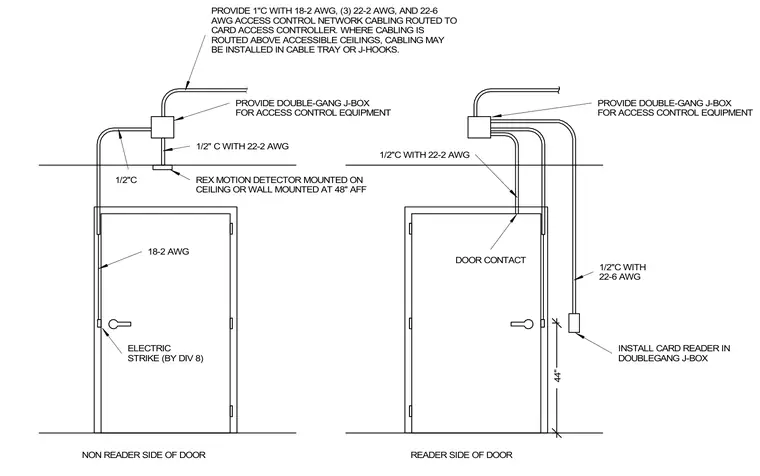

Access control low-voltage cabling originates from a card control controller through a one-inch conduit with 18-2 American Wire Gauge, three 22-2 American Wire Gauge, and 22-6 American Wire Gauge conductors routed to a double-gang junction box above the ceiling. Cabling above accessible ceilings runs through cable trays or J-hooks. A half-inch conduit with 22-2 American Wire Gauge connects to a request-to-exit motion detector mounted on the ceiling or wall at forty-eight inches above finished floor. The non-reader side of the door receives an electric strike provided by Division 8 connected via a half-inch conduit with 18-2 American Wire Gauge. The reader side of the door features a door contact served by a half-inch conduit with 22-2 American Wire Gauge, and a card reader installed in a double-gang junction box at forty-four inches above finished floor served by a half-inch conduit with 22-6 American Wire Gauge.
