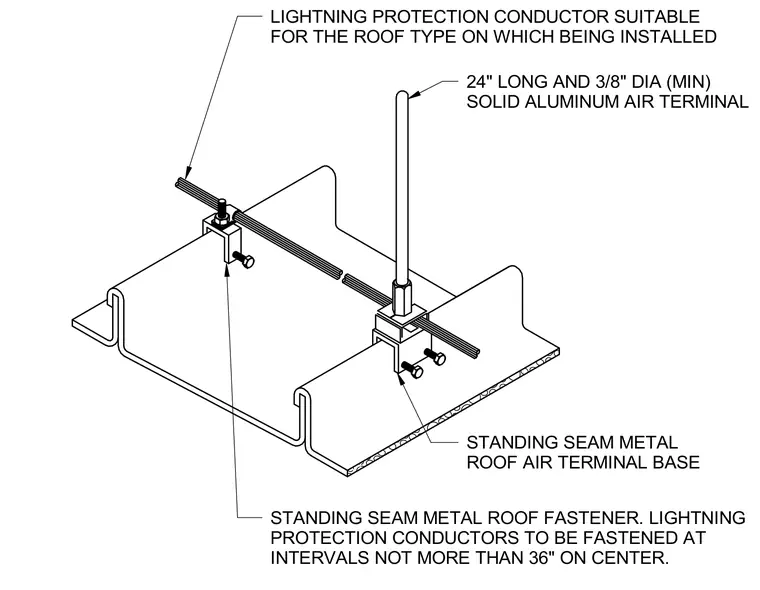

A solid aluminum air terminal measuring twenty-four inches long and three-eighths of an inch in diameter minimum mounts to a standing seam metal roof air terminal base. The lightning protection conductor secures to the roof using suitable standing seam metal roof fasteners spaced at intervals not more than thirty-six inches on center.
LIGHTNING PROTECTION CONDUCTOR SUITABLE FOR THE ROOF TYPE ON WHICH BEING INSTALLED 24" LONG AND 3/8" DIA (MIN) SOLID ALUMINUM AIR TERMINAL STANDING SEAM METAL ROOF AIR TERMINAL BASE STANDING SEAM METAL ROOF FASTENER. LIGHTNING PROTECTION CONDUCTORS TO BE FASTENED AT INTERVALS NOT MORE THAN 36" ON CENTER.
