Structural · E-GRR87

Ec1 North Armature At Horizontal Steel

Materials

Steel Glass / Glazing

Elements

Columns Connections / Plates

Connections

HSS Connection

About this detail

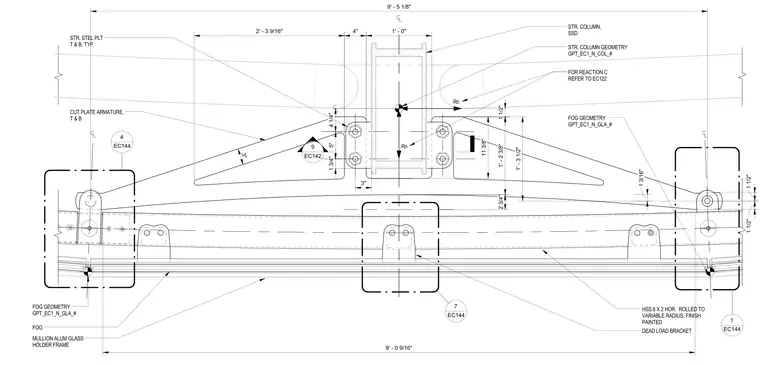

A curved steel plate armature connects to top and bottom structural steel plates, which attach to a typical structural steel column using bolted connections. A horizontal hollow structural section measuring 6x2 inches is rolled to a variable radius and finished with paint, supporting a dead load bracket and an aluminum glass holder frame system. Cut plate armatures extend horizontally with top and bottom plates. Reaction forces are detailed referencing sheet EC122, with geometry coordinated across multiple grid lines.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
