Electrical · E-GRA39

Hybrid Lighting Control Diagram

Materials

Elements

About this detail

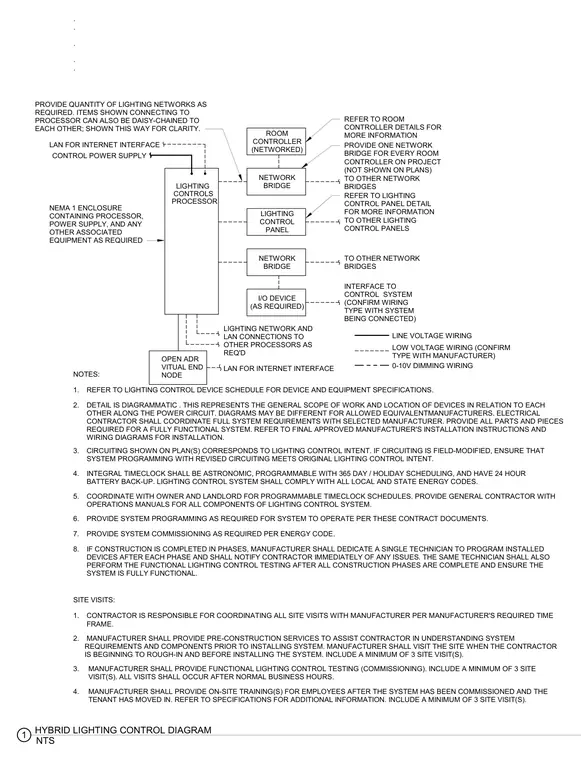

A hybrid lighting control system architectural layout and connection hierarchy. A NEMA 1 enclosure houses the lighting controls processor, power supply, and associated equipment. Dashed and solid lines define line voltage wiring, low voltage wiring, 0-10V dimming wiring, LAN connections, and control power supplies linking room controllers, network bridges, lighting control panels, and I/O devices. Associated general and site visit notes specify requirements for manufacturer coordination, timeclock scheduling, system programming, phased construction testing, and commissioning.

NOTES: 1. REFER TO LIGHTING CONTROL DEVICE SCHEDULE FOR DEVICE AND EQUIPMENT SPECIFICATIONS. 2. DETAIL IS DIAGRAMMATIC . THIS REPRESENTS THE GENERAL SCOPE OF WORK AND LOCATION OF DEVICES IN RELATION TO EACH OTHER ALONG THE POWER CIRCUIT. DIAGRAMS MAY BE DIFFERENT FOR ALLOWED EQUIVALENTMANUFACTURERS. ELECTRICAL CONTRACTOR SHALL COORDINATE FULL SYSTEM REQUIREMENTS WITH SELECTED MANUFACTURER. PROVIDE ALL PARTS AND PIECES REQUIRED FOR A FULLY FUNCTIONAL SYSTEM. REFER TO FINAL APPROVED MANUFACTURER'S INSTALLATION INSTRUCTIONS AND WIRING DIAGRAMS FOR INSTALLATION. 3. CIRCUITING SHOWN ON PLAN(S) CORRESPONDS TO LIGHTING CONTROL INTENT. IF CIRCUITING IS FIELD-MODIFIED, ENSURE THAT SYSTEM PROGRAMMING WITH REVISED CIRCUITING MEETS ORIGINAL LIGHTING CONTROL INTENT. 4. INTEGRAL TIMECLOCK SHALL BE ASTRONOMIC, PROGRAMMABLE WITH 365 DAY / HOLIDAY SCHEDULING, AND HAVE 24 HOUR BATTERY BACK-UP. LIGHTING CONTROL SYSTEM SHALL COMPLY WITH ALL LOCAL AND STATE ENERGY CODES. 5. COORDINATE WITH OWNER AND LANDLORD FOR PROGRAMMABLE TIMECLOCK SCHEDULES. PROVIDE GENERAL CONTRACTOR WITH OPERATIONS MANUALS FOR ALL COMPONENTS OF LIGHTING CONTROL SYSTEM. 6. PROVIDE SYSTEM PROGRAMMING AS REQUIRED FOR SYSTEM TO OPERATE PER THESE CONTRACT DOCUMENTS. 7. PROVIDE SYSTEM COMMISSIONING AS REQUIRED PER ENERGY CODE. 8. IF CONSTRUCTION IS COMPLETED IN PHASES, MANUFACTURER SHALL DEDICATE A SINGLE TECHNICIAN TO PROGRAM INSTALLED DEVICES AFTER EACH PHASE AND SHALL NOTIFY CONTRACTOR IMMEDIATELY OF ANY ISSUES. THE SAME TECHNICIAN SHALL ALSO PERFORM THE FUNCTIONAL LIGHTING CONTROL TESTING AFTER ALL CONSTRUCTION PHASES ARE COMPLETE AND ENSURE THE SYSTEM IS FULLY FUNCTIONAL. LIGHTING CONTROLS PROCESSOR NETWORK BRIDGE LIGHTING CONTROL PANEL PROVIDE ONE NETWORK BRIDGE FOR EVERY ROOM CONTROLLER ON PROJECT (NOT SHOWN ON PLANS) ROOM CONTROLLER (NETWORKED) TO OTHER LIGHTING CONTROL PANELS TO OTHER NETWORK BRIDGES PROVIDE QUANTITY OF LIGHTING NETWORKS AS REQUIRED. ITEMS SHOWN CONNECTING TO PROCESSOR CAN ALSO BE DAISY-CHAINED TO EACH OTHER; SHOWN THIS WAY FOR CLARITY. NEMA 1 ENCLOSURE CONTAINING PROCESSOR, POWER SUPPLY, AND ANY OTHER ASSOCIATED EQUIPMENT AS REQUIRED LAN FOR INTERNET INTERFACE REFER TO ROOM CONTROLLER DETAILS FOR MORE INFORMATION NETWORK BRIDGE TO OTHER NETWORK BRIDGES I/O DEVICE (AS REQUIRED) INTERFACE TO CONTROL SYSTEM (CONFIRM WIRING TYPE WITH SYSTEM BEING CONNECTED) LIGHTING NETWORK AND LAN CONNECTIONS TO OTHER PROCESSORS AS REQ'D LINE VOLTAGE WIRING REFER TO LIGHTING CONTROL PANEL DETAIL FOR MORE INFORMATION SITE VISITS: 1. CONTRACTOR IS RESPONSIBLE FOR COORDINATING ALL SITE VISITS WITH MANUFACTURER PER MANUFACTURER'S REQUIRED TIME FRAME. 2. MANUFACTURER SHALL PROVIDE PRE-CONSTRUCTION SERVICES TO ASSIST CONTRACTOR IN UNDERSTANDING SYSTEM REQUIREMENTS AND COMPONENTS PRIOR TO INSTALLING SYSTEM. MANUFACTURER SHALL VISIT THE SITE WHEN THE CONTRACTOR IS BEGINNING TO ROUGH-IN AND BEFORE INSTALLING THE SYSTEM. INCLUDE A MINIMUM OF 3 SITE VISIT(S). 3. MANUFACTURER SHALL PROVIDE FUNCTIONAL LIGHTING CONTROL TESTING (COMMISSIONING). INCLUDE A MINIMUM OF 3 SITE VISIT(S). ALL VISITS SHALL OCCUR AFTER NORMAL BUSINESS HOURS. 4. MANUFACTURER SHALL PROVIDE ON-SITE TRAINING(S) FOR EMPLOYEES AFTER THE SYSTEM HAS BEEN COMMISSIONED AND THE TENANT HAS MOVED IN. REFER TO SPECIFICATIONS FOR ADDITIONAL INFORMATION. INCLUDE A MINIMUM OF 3 SITE VISIT(S). · · · · · LOW VOLTAGE WIRING (CONFIRM TYPE WITH MANUFACTURER) 0-10V DIMMING WIRING CONTROL POWER SUPPLY OPEN ADR VITUAL END NODE LAN FOR INTERNET INTERFACE NTS 1 HYBRID LIGHTING CONTROL DIAGRAM
