Typical Conduit Racking and Support Diagrams

Materials

Elements

About this detail

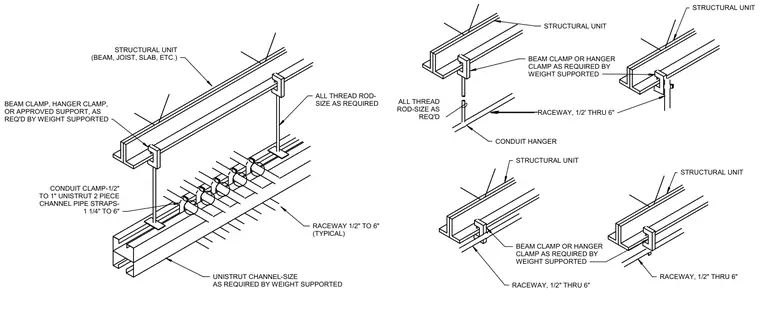

Conduits and raceways ranging from one-half inch to six inches in diameter are supported by Unistrut channels, conduit clamps, and two-piece channel pipe straps sized according to the supported weight. All-thread rods suspend the Unistrut channels or conduit hangers from overhead structural units such as beams, joists, or slabs. Beam clamps or hanger clamps attach directly to the structural units as required by the weight supported. This typical support configuration accommodates multiple runs of raceways suspended below structural framing.
