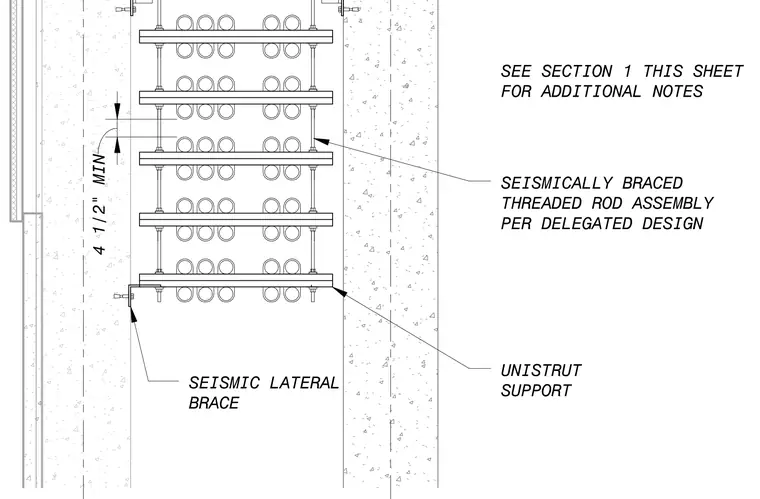

Stacked Unistrut support channels carry conduits or piping tiers suspended by threaded rod assemblies. A seismically braced threaded rod assembly per delegated design provides vertical and lateral stability. A seismic lateral brace ties the framing back to the wall structure. Minimum vertical spacing is maintained at four and one-half inches between support tiers.
E SEE SECTION 1 THIS SHEET FOR ADDITIONAL NOTES E i E SEISMICALLY BRACED THREADED ROD ASSEMBLY PER DELEGATED DESIGN CM E 3 L UNISTRUT SUPPORT SEISMIC LATERAL BRACE 1.
