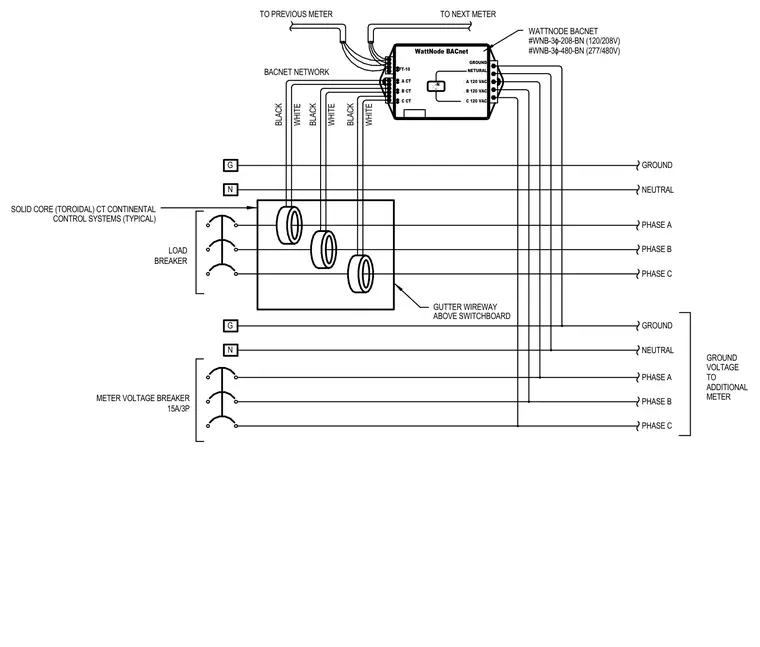

The Continental Control Systems WattNode BACnet meter connects to three solid-core toroidal current transformers positioned on phase conductors within a gutter wireway above the switchboard. Phase A, Phase B, and Phase C lines route through the current transformers while voltage references tie into a fifteen-amp three-pole meter voltage breaker. The unit receives power from line phases and neutral terminals alongside ground connections linked to additional meters. Communication wiring utilizes an FT-10 BACnet network daisy-chained to previous and next meters.
WHITE BLACK WHITE BLACK WHITE BLACK PHASE A PHASE B PHASE C GROUND LOAD GUTTER WIREWAY BACNET NETWORK SOLID CORE (TOROIDAL) CT CONTINENTAL CONTROL SYSTEMS (TYPICAL) WATTNODE BACNET #WNB-3ɸ-208-BN (120/208V) #WNB-3ɸ-480-BN (277/480V) FT-10 ∅A CT ∅B CT ∅C CT GROUND WattNode BACnet NETURAL ∅A 120 VAC ∅B 120 VAC ∅C 120 VAC G N G BREAKER GROUND NEUTRAL N NEUTRAL PHASE A PHASE B PHASE C ABOVE SWITCHBOARD METER VOLTAGE BREAKER 15A/3P ∅-N ∅-∅ TO NEXT METER GROUND VOLTAGE TO ADDITIONAL METER TO PREVIOUS METER
