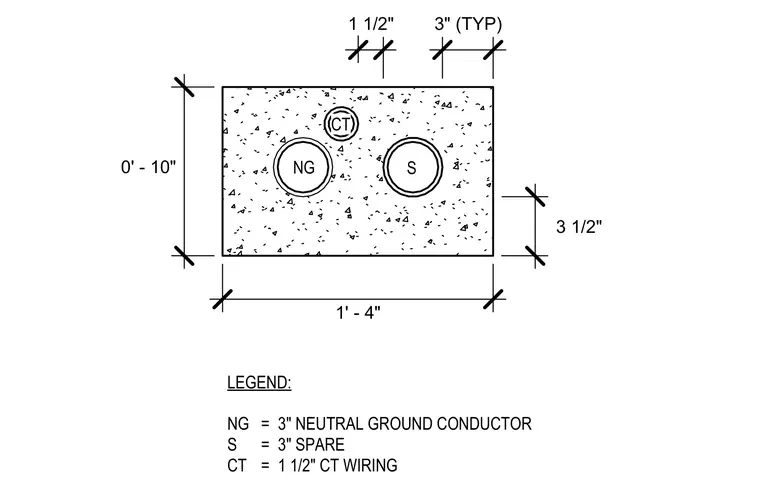

An underground concrete ductbank profile measuring one foot four inches wide by ten inches high contains three conduits arranged with specific spacing. A three-inch neutral ground conductor conduit and a three-inch spare conduit sit on the lower level with three and a half inch typical spacing from edges, while a one and a half inch current transformer wiring conduit is positioned above them. A legend defines the conduit designations for the neutral ground conductor, spare, and current transformer wiring.
3 1/2" 1 1/2" 3" (TYP) 1' - 4" 0' - 10" LEGEND: NG = 3" NEUTRAL GROUND CONDUCTOR S = 3" SPARE CT = 1 1/2" CT WIRING NG S CT
