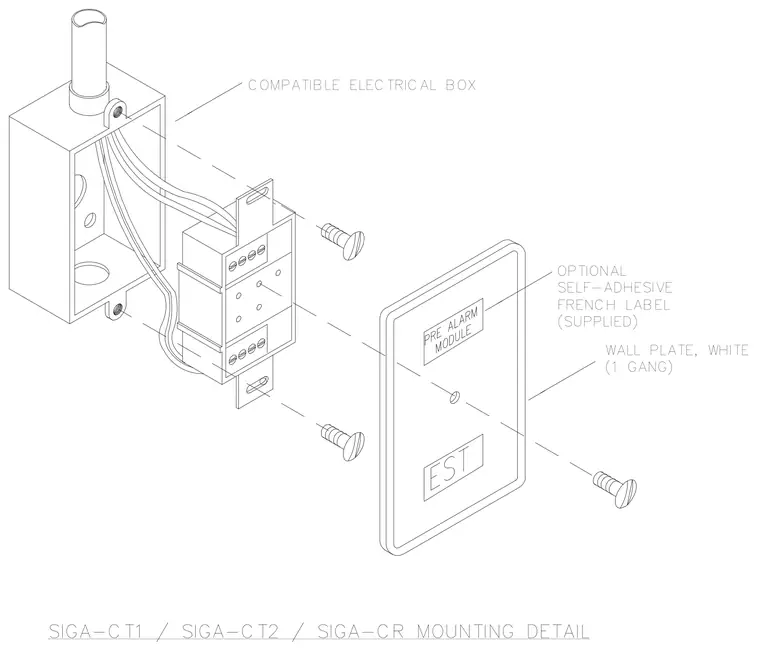

Installation of a Siga-CT1, Siga-CT2, or Siga-CR control module inside a compatible electrical box. The module is wired and secured to the box using mounting screws, and finished with a white one-gang wall plate attached via a central screw. An optional self-adhesive French label is supplied for application on the faceplate.
FRENCH LABEL (SUPPLIED) (1 GANG) WALL PLATE, WHITE SELF-ADHESIVE OPTIONAL COMPATIBLE ELECTRICAL BOX SIGA-CT1 / SIGA-CT2 / SIGA-CR MOUNTING DETAIL
