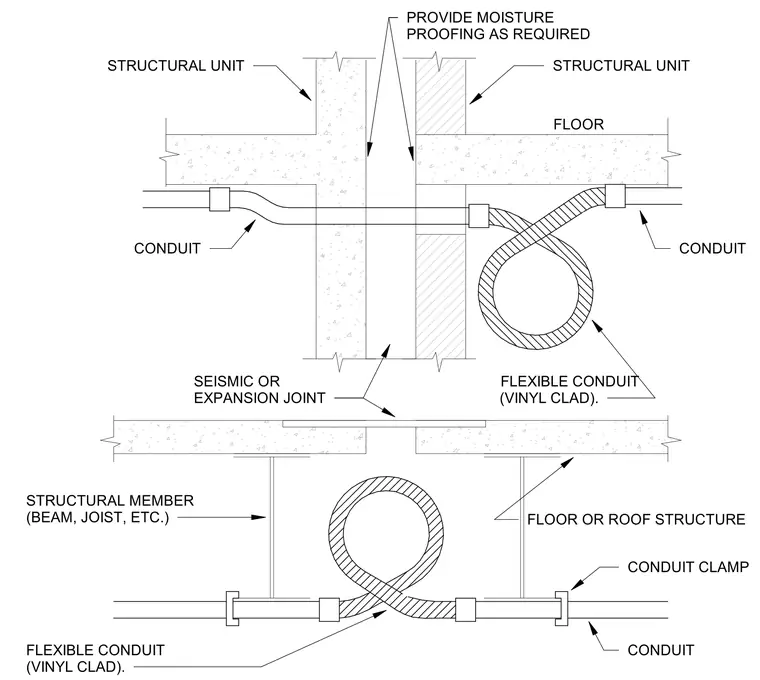

Electrical conduit spans across a seismic or expansion joint separating two independent structural units or floor and roof structures. A vinyl-clad flexible conduit loop is inserted into the run to accommodate differential movement between the structures. Rigid conduit connects to the flexible section via conduit clamps secured to the structural members on each side of the joint. Moisture proofing is provided at the building joint as required.
PROVIDE MOISTURE PROOFING AS REQUIRED STRUCTURAL UNIT CONDUIT FLEXIBLE CONDUIT (VINYL CLAD). SEISMIC OR EXPANSION JOINT CONDUIT STRUCTURAL UNIT FLOOR STRUCTURAL MEMBER (BEAM, JOIST, ETC.) FLEXIBLE CONDUIT (VINYL CLAD). CONDUIT CONDUIT CLAMP FLOOR OR ROOF STRUCTURE
