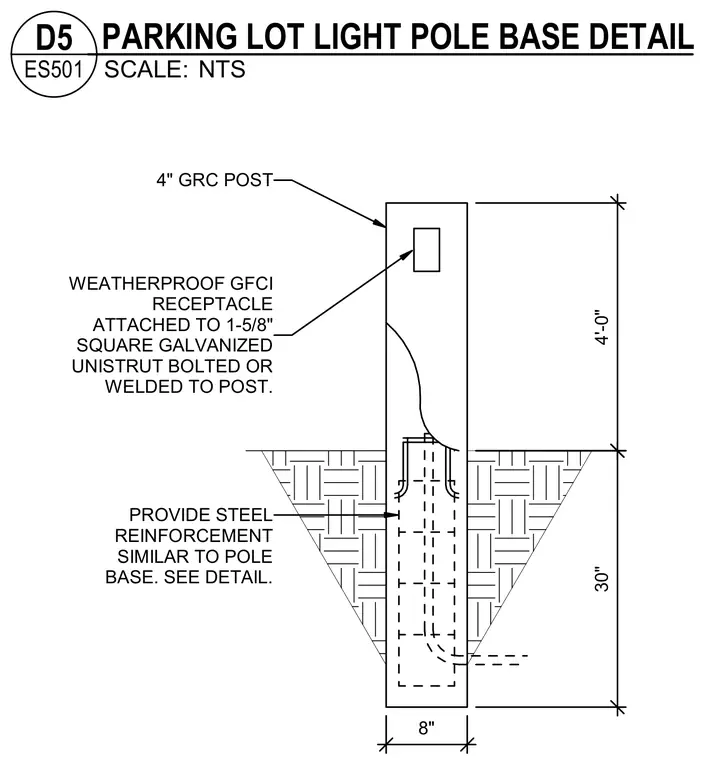

A four-inch galvanized rigid conduit post is embedded thirty inches into a concrete foundation with steel reinforcement. A weatherproof ground fault circuit interrupter receptacle is attached to a one and five-eighths inch square galvanized Unistrut, which is bolted or welded to the post. The post extends four feet above grade.
30" 8" WEATHERPROOF GFCI RECEPTACLE ATTACHED TO 1-5/8" SQUARE GALVANIZED UNISTRUT BOLTED OR WELDED TO POST. PROVIDE STEEL REINFORCEMENT SIMILAR TO POLE BASE. SEE DETAIL. 4'-0" 4" GRC POST SCALE: NTS ES501 D5 PARKING LOT LIGHT POLE BASE DETAIL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
