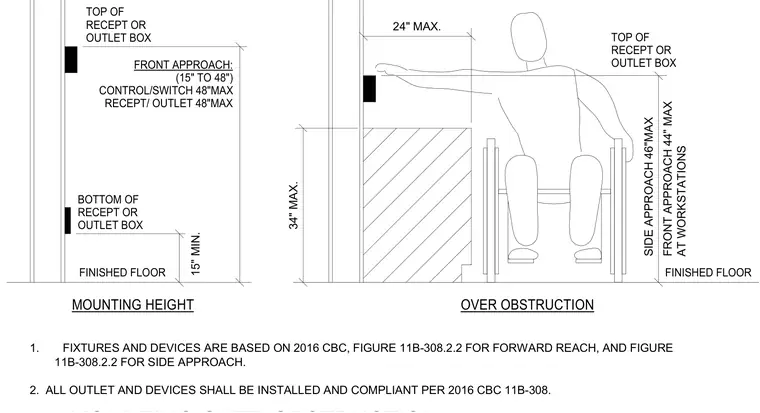

Electrical outlets and control switches are mounted at specified heights above the finished floor to maintain accessibility over obstructions. For side approach, the maximum mounting height is forty-six inches with a maximum obstruction depth of twenty-four inches. For front approach, the maximum mounting height is forty-four inches at workstations or forty-eight inches maximum for general switches and receptacles. The bottom of the outlet box is positioned at a minimum of fifteen inches above the finished floor.
24" MAX. SIDE APPROACH 46"MAX 34" MAX. MOUNTING HEIGHT OVER OBSTRUCTION FINISHED FLOOR BOTTOM OF RECEPT OR OUTLET BOX TOP OF RECEPT OR OUTLET BOX FRONT APPROACH 44" MAX AT WORKSTATIONS TOP OF RECEPT OR OUTLET BOX FINISHED FLOOR FRONT APPROACH: (15" TO 48") CONTROL/SWITCH 48"MAX RECEPT/ OUTLET 48"MAX 1. FIXTURES AND DEVICES ARE BASED ON 2016 CBC, FIGURE 11B-308.2.2 FOR FORWARD REACH, AND FIGURE 11B-308.2.2 FOR SIDE APPROACH. 2. ALL OUTLET AND DEVICES SHALL BE INSTALLED AND COMPLIANT PER 2016 CBC 11B-308. 15" MIN.
