Electrical · E-GBA52

Electrical One-Line Diagram Continuation

About this detail

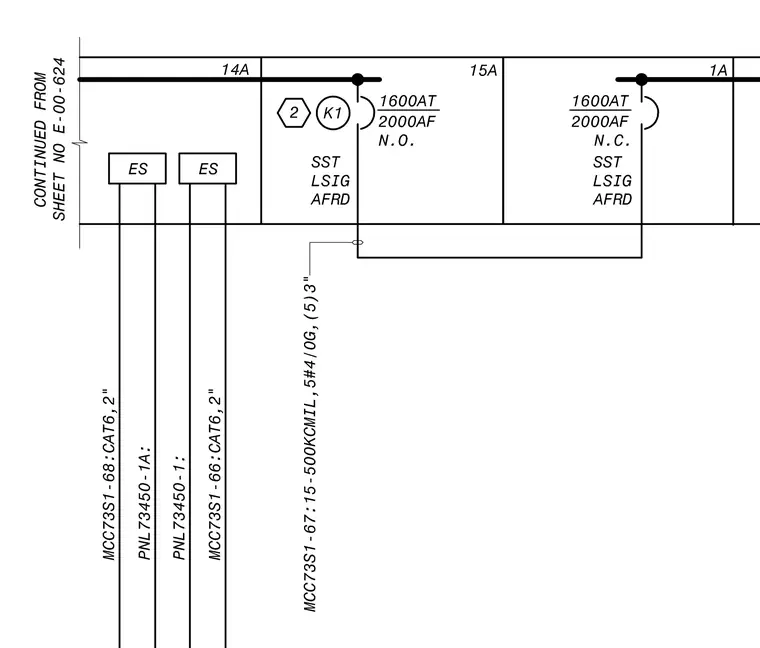

An electrical one-line diagram continuation shows switchgear bus arrangements and circuit breaker designations. Circuit breakers are specified with 1600 ampere trip and 2000 ampere frame ratings, incorporating solid state trip units with long-time, short-time, instantaneous, and ground fault functions. Feeders connect to downstream panels and motor control centers using specified conductor sizes and conduit runs.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
