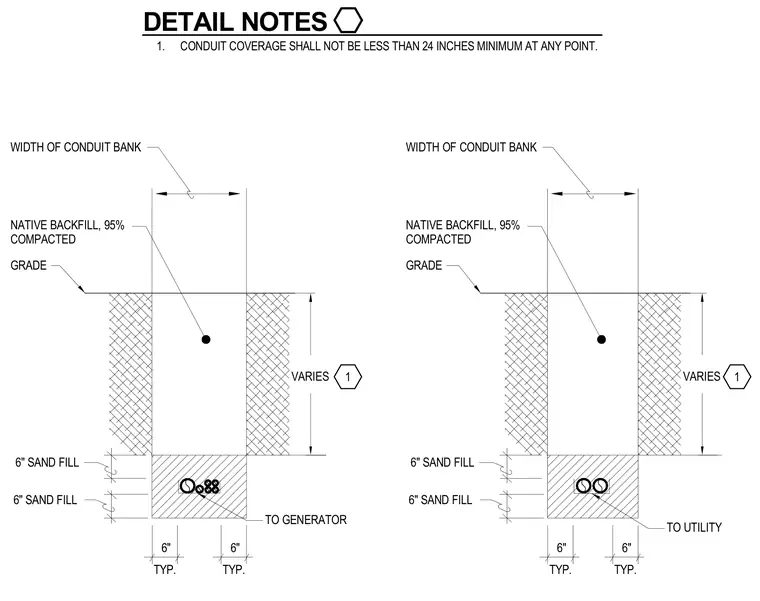

Underground electrical conduit banks are bedded in a six-inch sand fill base with an additional six-inch sand fill layer surrounding the conduits, flanked by six inches of typical clearance on the sides. The trench is backfilled with native material compacted to ninety-five percent relative density up to the finished grade. Conduit coverage requires a minimum depth of twenty-four inches at any point from the finished grade. The trench width and depth vary based on the specific conduit bank configuration routed to the generator or utility.
1. CONDUIT COVERAGE SHALL NOT BE LESS THAN 24 INCHES MINIMUM AT ANY POINT. 6" SAND FILL NATIVE BACKFILL, 95% COMPACTED WIDTH OF CONDUIT BANK VARIES 6" SAND FILL TO GENERATOR TO UTILITY 6" SAND FILL NATIVE BACKFILL, 95% COMPACTED GRADE WIDTH OF CONDUIT BANK VARIES 6" SAND FILL GRADE 1 TYP. 6" TYP. 6" 1 TYP. 6" TYP. 6" DETAIL NOTES
