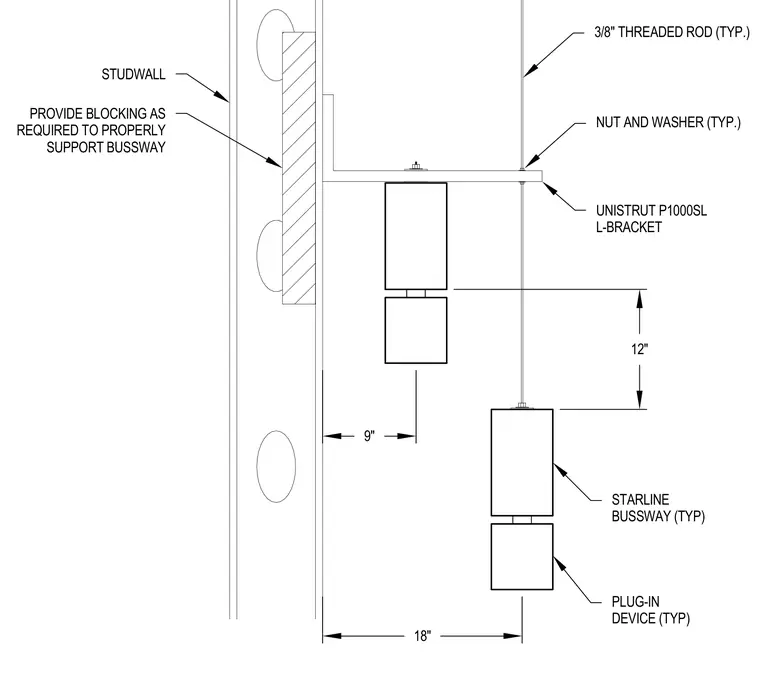

The Starline bussway and plug-in device are supported by a Unistrut P1000SL L-bracket attached to a stud wall. Additional vertical support is provided by a three-eighths-inch threaded rod secured with nuts and washers typically. Wood blocking is provided within the stud wall as required to properly support the bussway.
STUDWALL 12" 18" 9" PROVIDE BLOCKING AS REQUIRED TO PROPERLY SUPPORT BUSSWAY 3/8" THREADED ROD (TYP.) NUT AND WASHER (TYP.) UNISTRUT P1000SL L-BRACKET STARLINE BUSSWAY (TYP) PLUG-IN DEVICE (TYP)
