A duct smoke detector is installed within the supply air duct and connected to the fire alarm system. A shutdown control module links to the HVAC equipment with shutdown wiring routed to the unit or variable frequency drive. Division 26 provides electrical components while Division 23 handles HVAC equipment installation.

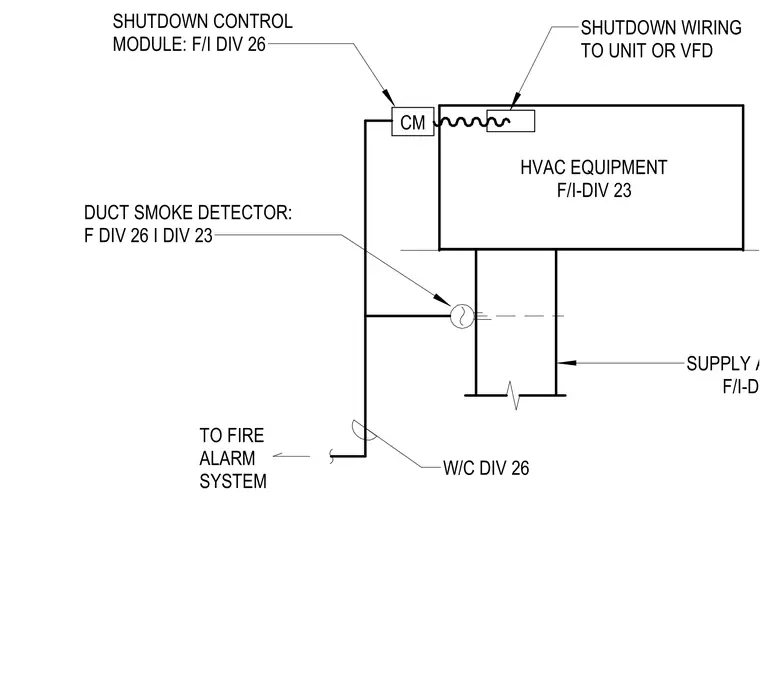

CM SHUTDOWN WIRING TO UNIT OR VFD SHUTDOWN CONTROL MODULE: F/I DIV 26 HVAC EQUIPMENT F/I-DIV 23 SUPPLY AIR DUCT F/I-DIV 23 DUCT SMOKE DETECTOR: F DIV 26 I DIV 23 W/C DIV 26 TO FIRE ALARM SYSTEM
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
