Electrical · E-G9PVE

Elevator Disconnect Shunt Trip Schematic

Materials

Elements

About this detail

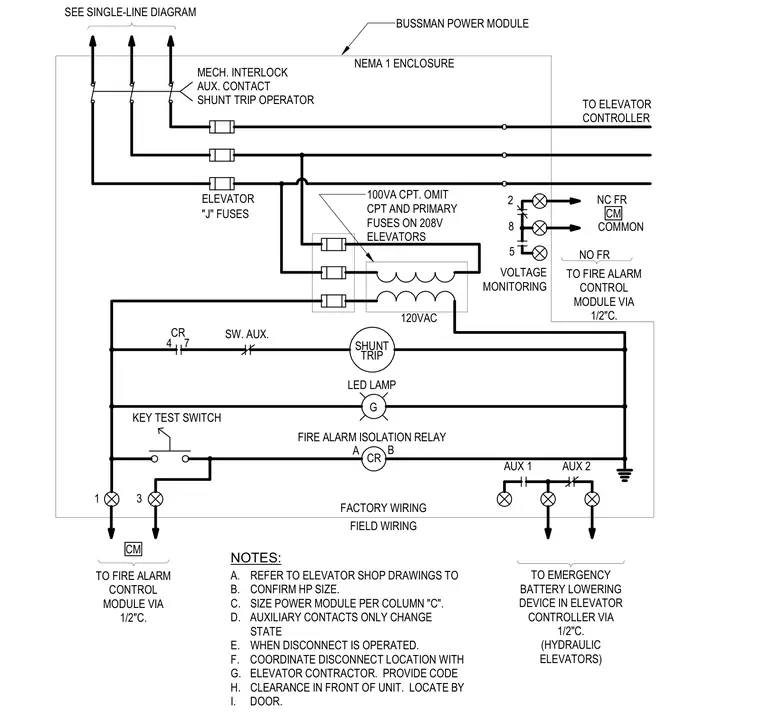

The schematic details an elevator disconnect housed in a NEMA 1 enclosure featuring a shunt trip operator, elevator J fuses, a Bussman power module, and a 100VA control power transformer with options to omit on 208V systems. Field wiring connections link the unit to the elevator controller, fire alarm control module via half-inch conduit, and emergency battery lowering devices for hydraulic elevators. Auxiliary contacts change state when the disconnect is operated, monitored by voltage relay connections and a key test switch. General notes direct coordination with elevator shop drawings and contractor requirements for sizing, horsepower confirmation, and code clearances.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
