Typical Stud Wall Equipment Rack Construction

Materials

Steel Timber / Wood

Elements

Columns Walls Floors / Slabs Anchors / Embeds Connections / Plates

Connections

Bolted Connection

About this detail

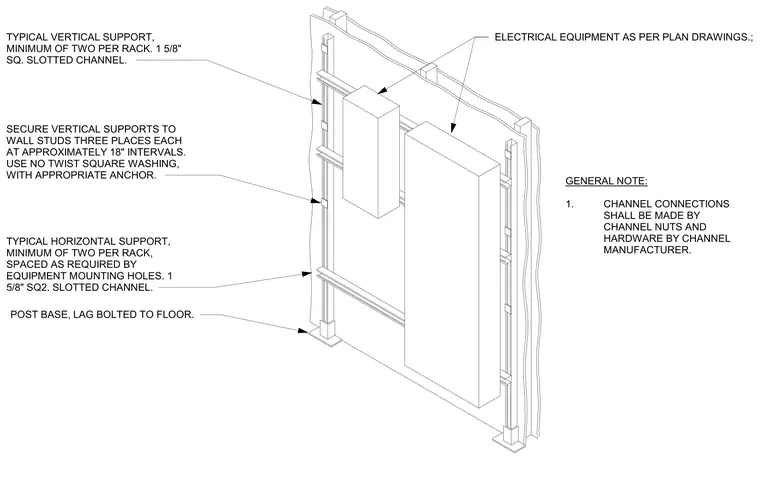

This assembly consists of 1-5/8 inch square slotted channels forming vertical and horizontal supports anchored to wall studs. Vertical supports require a minimum of two per rack, secured to wall studs at three places each at approximately 18-inch intervals using no-twist square washers and appropriate anchors. Horizontal supports require a minimum of two per rack, spaced as required by equipment mounting holes. Post bases are lag bolted to the floor. All channel connections are made using channel nuts and hardware supplied by the channel manufacturer, with electrical equipment sized and positioned per plan drawings.
