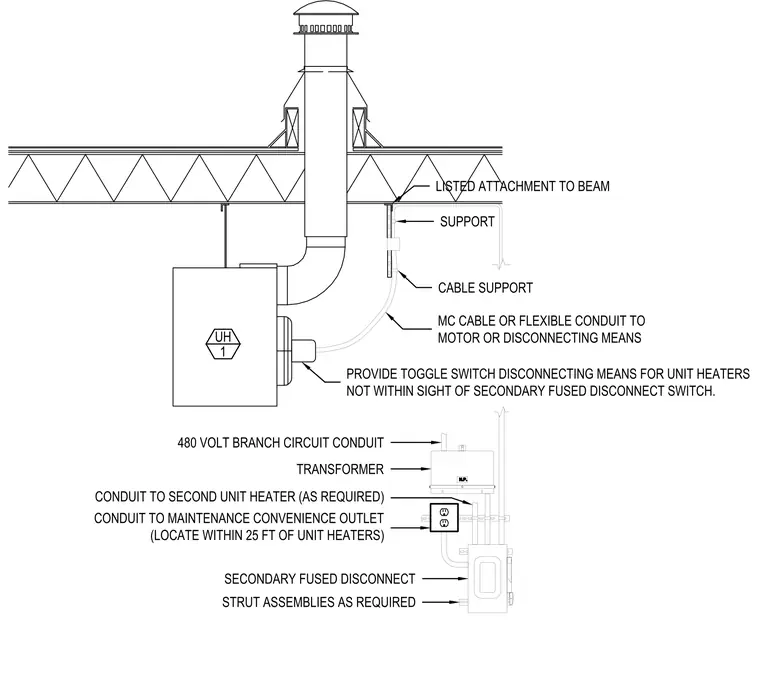

The unit heater is suspended from a structural beam using a listed attachment and support system. Power is supplied via a 480-volt branch circuit conduit to a transformer, which feeds a secondary fused disconnect switch. Metal-clad cable or flexible conduit connects the disconnect to the unit heater motor. A toggle switch disconnect is provided for the unit heater if it is not within sight of the secondary fused disconnect. A maintenance convenience outlet is installed within 25 feet of the unit heater, with all components mounted using strut assemblies as required.
Text on the drawing
5 7 INDUSTRIAL FLUORESCENT LIGHT 4 8 UNIT HEATER AND TRANSFORMER INSTALLATION DETAIL TRANSFORMER SECONDARY FUSED DISCONNECT MC CABLE OR FLEXIBLE CONDUIT TO MOTOR OR DISCONNECTING MEANS UH 1 CONDUIT TO MAINTENANCE CONVENIENCE OUTLET (LOCATE WITHIN 25 FT OF UNIT HEATERS) CONDUIT TO SECOND UNIT HEATER (AS REQUIRED) PROVIDE TOGGLE SWITCH DISCONNECTING MEANS FOR UNIT HEATERS NOT WITHIN SIGHT OF SECONDARY FUSED DISCONNECT SWITCH. LISTED ATTACHMENT TO BEAM SUPPORT CABLE SUPPORT 480 VOLT BRANCH CIRCUIT CONDUIT STRUT ASSEMBLIES AS REQUIRED
