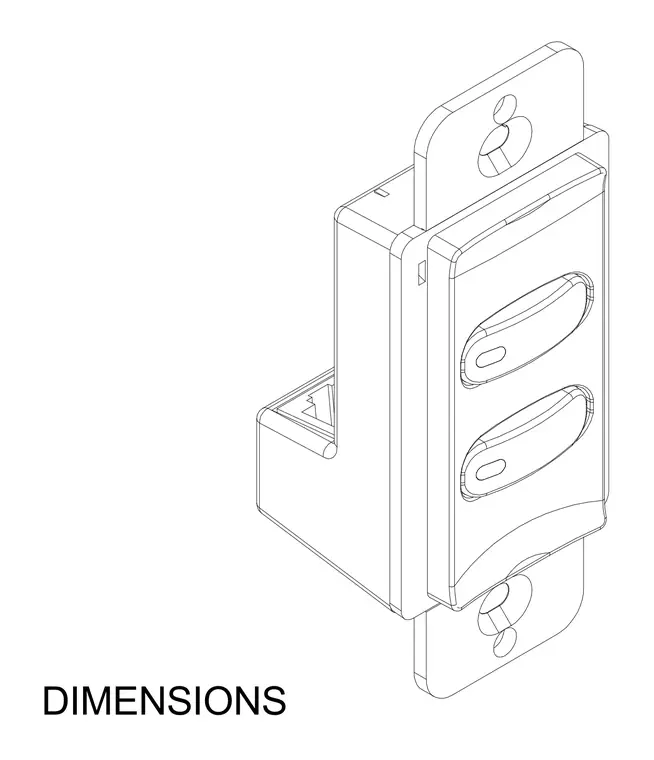

An electrical switch assembly featuring a dual-toggle faceplate mounted on a housing unit with extended upper and lower mounting tabs. Each mounting tab includes slotted keyhole openings for fastener attachment. The side housing incorporates an integrated data or communication port.
