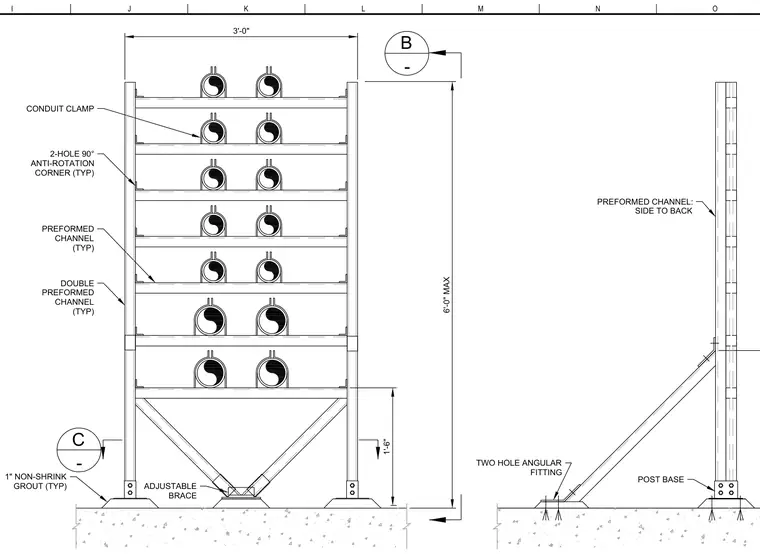

Preformed channels form a multi-tier trapeze rack secured with two-hole ninety-degree anti-rotation corners and supported by double preformed channel posts anchored into a concrete slab with post bases. Conduit clamps secure runs of conduit along each horizontal channel member. An adjustable brace connects via two-hole angular fittings to provide lateral stability to the frame. A one-inch layer of non-shrink grout is applied typically beneath the base plates.
- C - B TWO HOLE ANGULAR FITTING POST BASE PREFORMED CHANNEL: SIDE TO BACK 1" NON-SHRINK GROUT (TYP) PREFORMED CHANNEL (TYP) CONDUIT CLAMP 6'-0" MAX 3'-0" DOUBLE PREFORMED CHANNEL (TYP) 1'-6" ADJUSTABLE BRACE 2-HOLE 90° ANTI-ROTATION CORNER (TYP) O N M L K J I
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
