UPS and Distribution Panel Single Line Diagram

About this detail

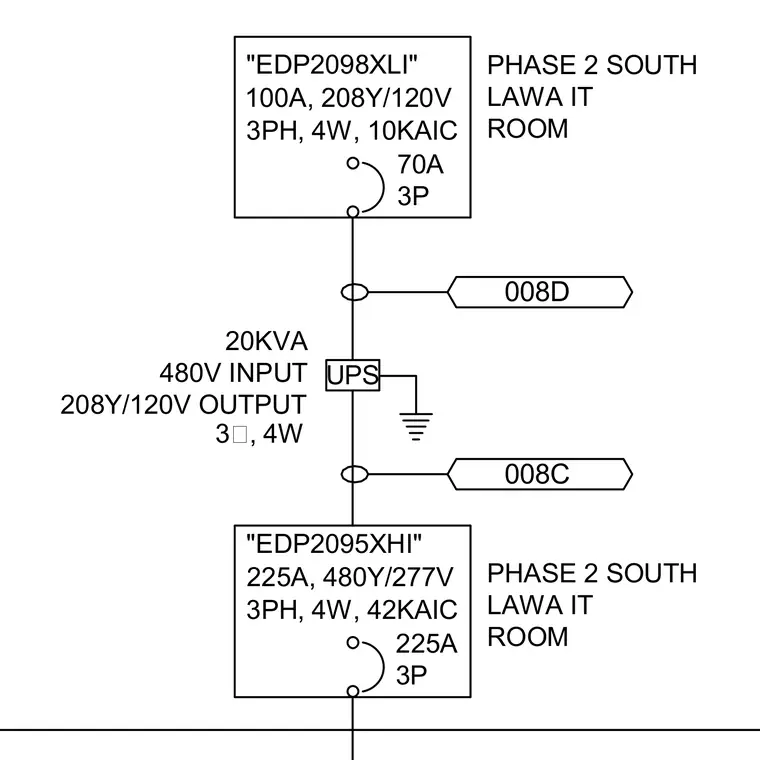

An uninterruptible power supply rated at twenty kilovolt-amperes with a 480V input and 208Y/120V output is fed by panel EDP2095XHI rated at 225A, 480Y/277V, 3-phase, 4-wire with a 42KAIC rating. The UPS output feeds panel EDP2098XLI rated at 100A, 208Y/120V, 3-phase, 4-wire with a 10KAIC rating through a 70A 3-pole circuit breaker. Both distribution paths include equipment ground connections and are located in the Phase 2 South LAWA IT room.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
