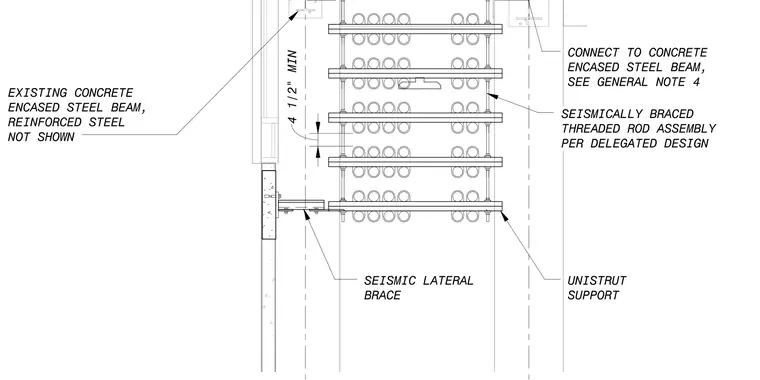

Suspended Unistrut support framing is hung from an existing concrete-encased steel beam using a seismically braced threaded rod assembly designed per delegated design requirements. A seismic lateral brace ties the framing back to the concrete element. Reinforcing steel within the concrete encasement is not shown.
CONNECT TO CONCRETE ENCASED STEEL BEAM, SEE GENERAL NOTE 4 ] CM EXISTING CONCRETE ENCASED STEEL BEAM, REINFORCED STEEL NOT SHOWN - SEISMICALLY BRACED THREADED ROD ASSEMBLY PER DELEGATED DESIGN 3 3 3 SEISMIC LATERAL BRACE UNISTRUT SUPPORT
