Electrical · E-G5WMM

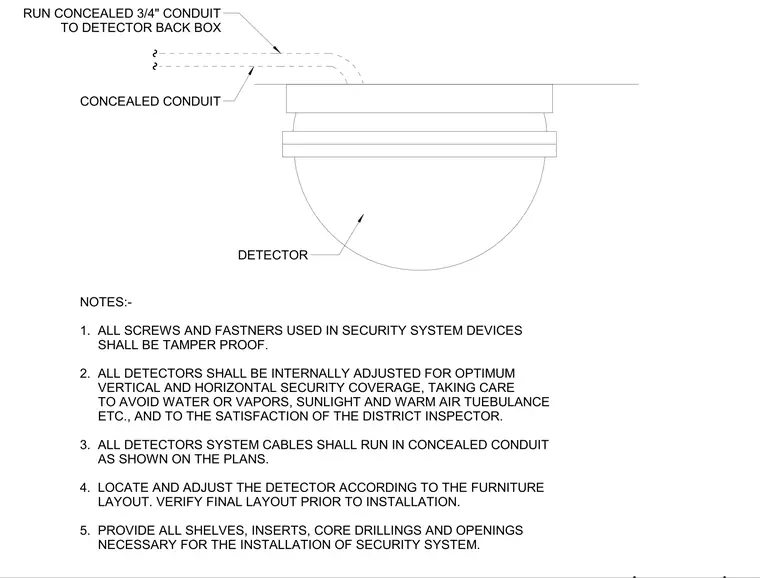

Security Motion Detector Mounting Detail

Elements

About this detail

A security motion detector is mounted with concealed three-quarter-inch conduit running directly to the detector back box. All screws and fasteners used in the security system devices must be tamper proof. Detectors are internally adjusted for optimum vertical and horizontal security coverage while avoiding moisture, sunlight, and warm air turbulence. System cables run in concealed conduit as indicated on the floor plans, and the final unit location is coordinated with the furniture layout.
