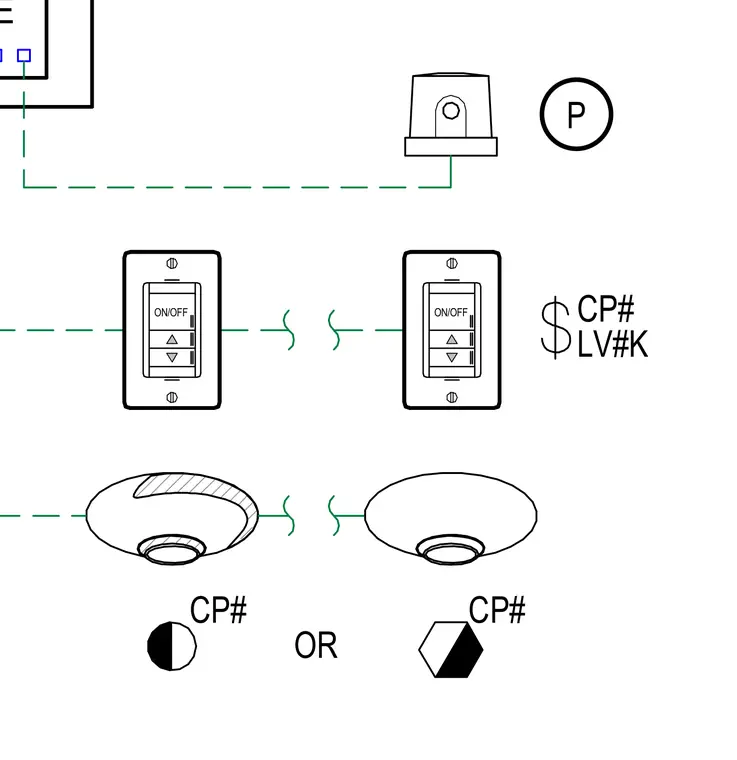

Auxiliary input and output connections link system interfaces with control points and low-voltage devices. Dashed green lines route signal pathways between the main panel interface, indicator lights, and on/off control switches. Control point designations and low-voltage keying annotations identify specific circuit requirements throughout the layout.
