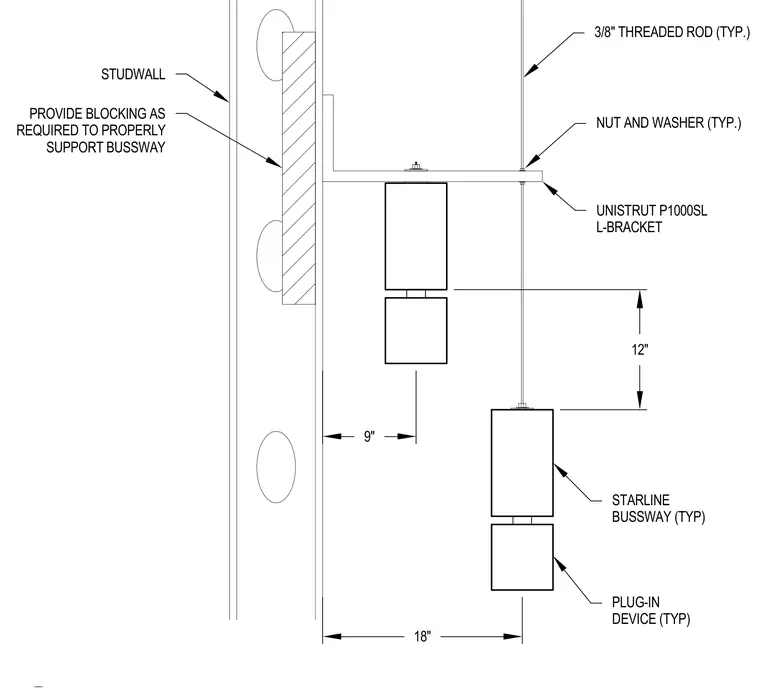

The Starline bussway and plug-in devices are supported by a Unistrut P1000SL L-bracket attached to a studwall with additional blocking provided as required. A 3/8-inch threaded rod with nuts and washers supports the outboard end of the assembly. Spacing dimensions are maintained at nine inches from the studwall face, twelve inches vertically between bussway tiers, and eighteen inches from the wall to the outer bussway drop.
STUDWALL 12" 18" 9" PROVIDE BLOCKING AS REQUIRED TO PROPERLY SUPPORT BUSSWAY 3/8" THREADED ROD (TYP.) NUT AND WASHER (TYP.) UNISTRUT P1000SL L-BRACKET STARLINE BUSSWAY (TYP) PLUG-IN DEVICE (TYP)
