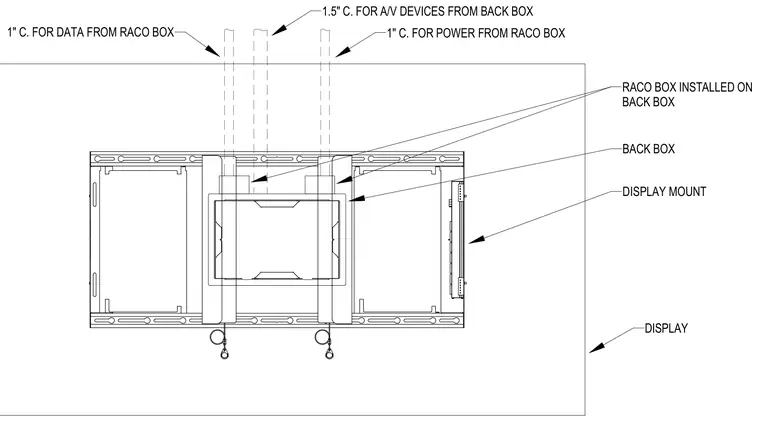

A display mount is attached to a back box, which is paired with a Raco box installed directly onto the back box. Three conduits extend upward from the rough-in boxes, consisting of a one-inch conduit for power, a one-and-a-half-inch conduit for audiovisual devices, and a one-inch conduit for data.
DISPLAY DISPLAY MOUNT RACO BOX INSTALLED ON BACK BOX 1" C. FOR POWER FROM RACO BOX 1.5" C. FOR A/V DEVICES FROM BACK BOX 1" C. FOR DATA FROM RACO BOX BACK BOX
