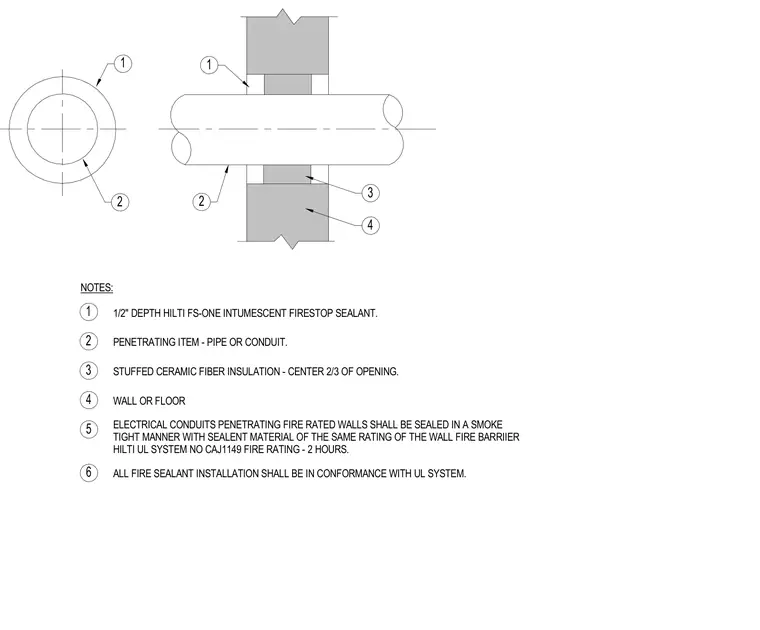

An electrical conduit or pipe penetrates a fire-rated wall or floor assembly with an annular space sealed for a two-hour fire rating. The penetration is packed in the center two-thirds with stuffed ceramic fiber insulation and finished at the surface with a one-half-inch depth of Hilti FS-ONE intumescent firestop sealant. All installations conform to Hilti UL System No. CAJ1149 to maintain smoke-tight fire barrier integrity matching the surrounding construction.
1 2 3 4 5 6 NOTES: 1/2" DEPTH HILTI FS-ONE INTUMESCENT FIRESTOP SEALANT. PENETRATING ITEM - PIPE OR CONDUIT. STUFFED CERAMIC FIBER INSULATION - CENTER 2/3 OF OPENING. WALL OR FLOOR ELECTRICAL CONDUITS PENETRATING FIRE RATED WALLS SHALL BE SEALED IN A SMOKE TIGHT MANNER WITH SEALENT MATERIAL OF THE SAME RATING OF THE WALL FIRE BARRIIER HILTI UL SYSTEM NO CAJ1149 FIRE RATING - 2 HOURS. ALL FIRE SEALANT INSTALLATION SHALL BE IN CONFORMANCE WITH UL SYSTEM. 3 2 4 2 1 1
