Electrical · E-FZ24T

Electrical Equipment Laminated Plastic Tag Detail

About this detail

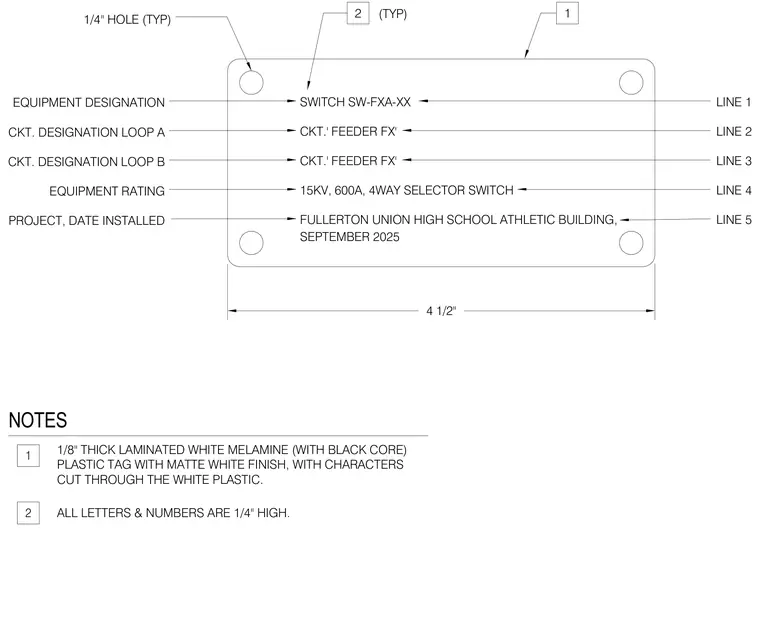

This four-and-a-half-inch wide electrical equipment tag is fabricated from one-eighth-inch thick laminated white melamine plastic with a black core and matte white finish. Characters are cut directly through the white surface layer to reveal the black core. All engraved letters and numbers are one-quarter-inch high. The tag features four typical one-quarter-inch mounting holes in the corners. Five text lines accommodate the equipment designation, circuit designations for loops A and B, the equipment rating, and project identification information.
