The access door assembly features a flush panel measuring fifty-nine inches long by twenty-four inches wide, bound by studs along the perimeter. A hinge connects along the edge while a recessed handle sits centered on the panel face. Recessed half-inch sixteen UNC captive pentahead bolts secure the door corners. Overall dimensions include twenty-nine and one-quarter inch panel spans and quarter-inch edge clearances.

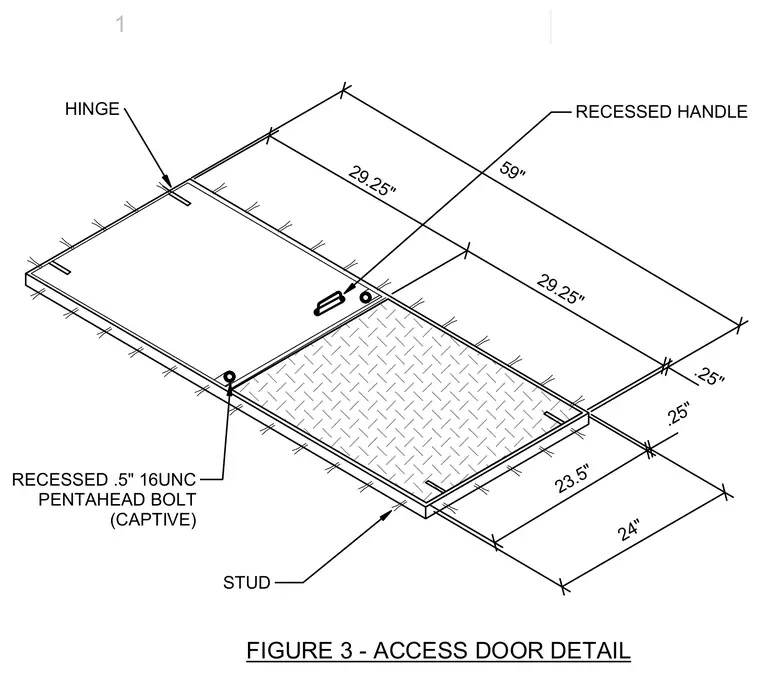

FIGURE 3 - ACCESS DOOR DETAIL HINGE RECESSED HANDLE STUD RECESSED .5" 16UNC PENTAHEAD BOLT (CAPTIVE) 59" 29.25" 29.25" 24" 23.5" .25" .25" 1
